Sensor (cartridge door interlock) removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 464.

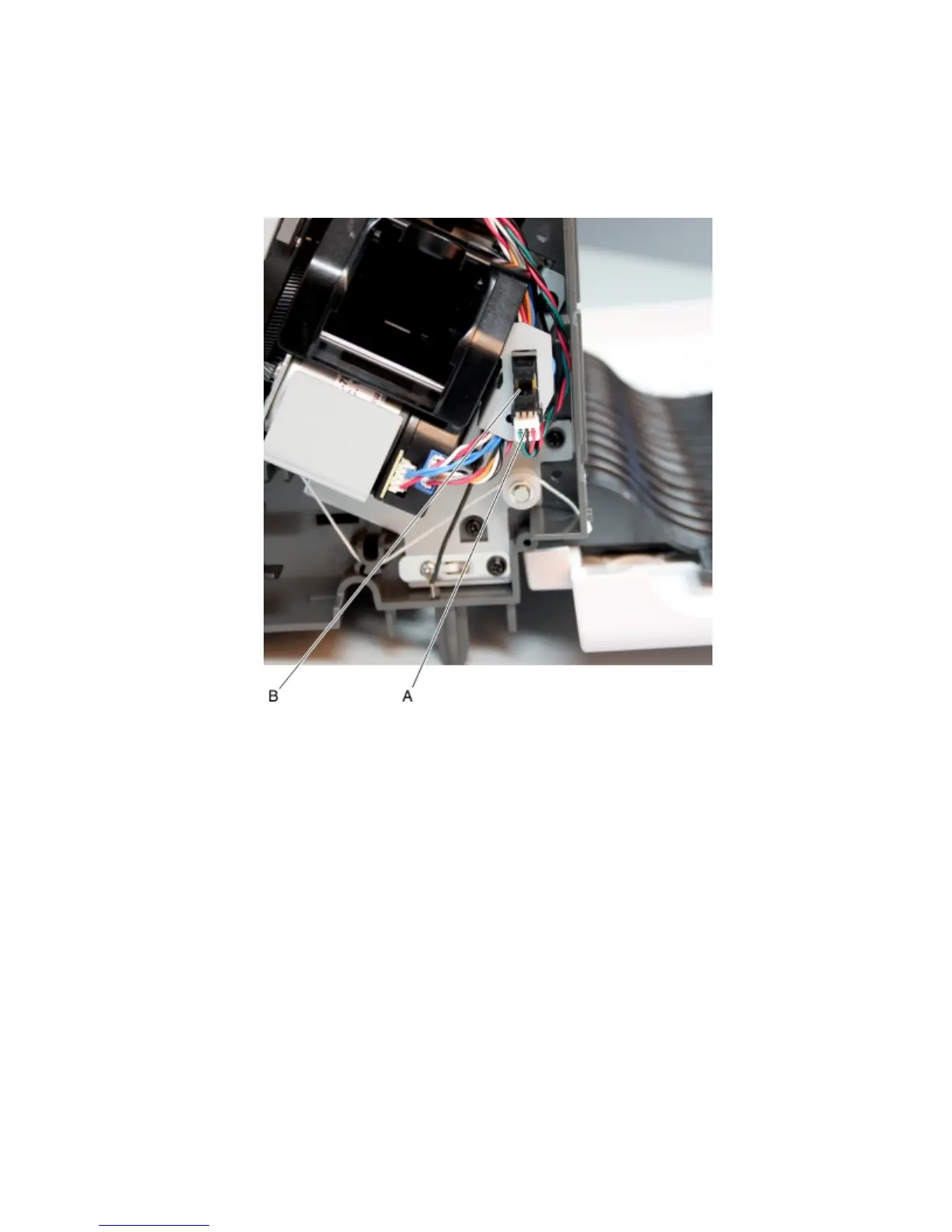

2 Disconnect the cable (A) from the sensor.
3 Release the latches from the stapler assembly frame, then remove the sensor (B).
Stapler door close limit switch removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 470.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 464.
3 Remove the stapler top cover. See “Stapler top cover removal” on page 472.
4063
Repair information
466
