Lexmark MS81 Series - Left Control Panel Hinge Removal

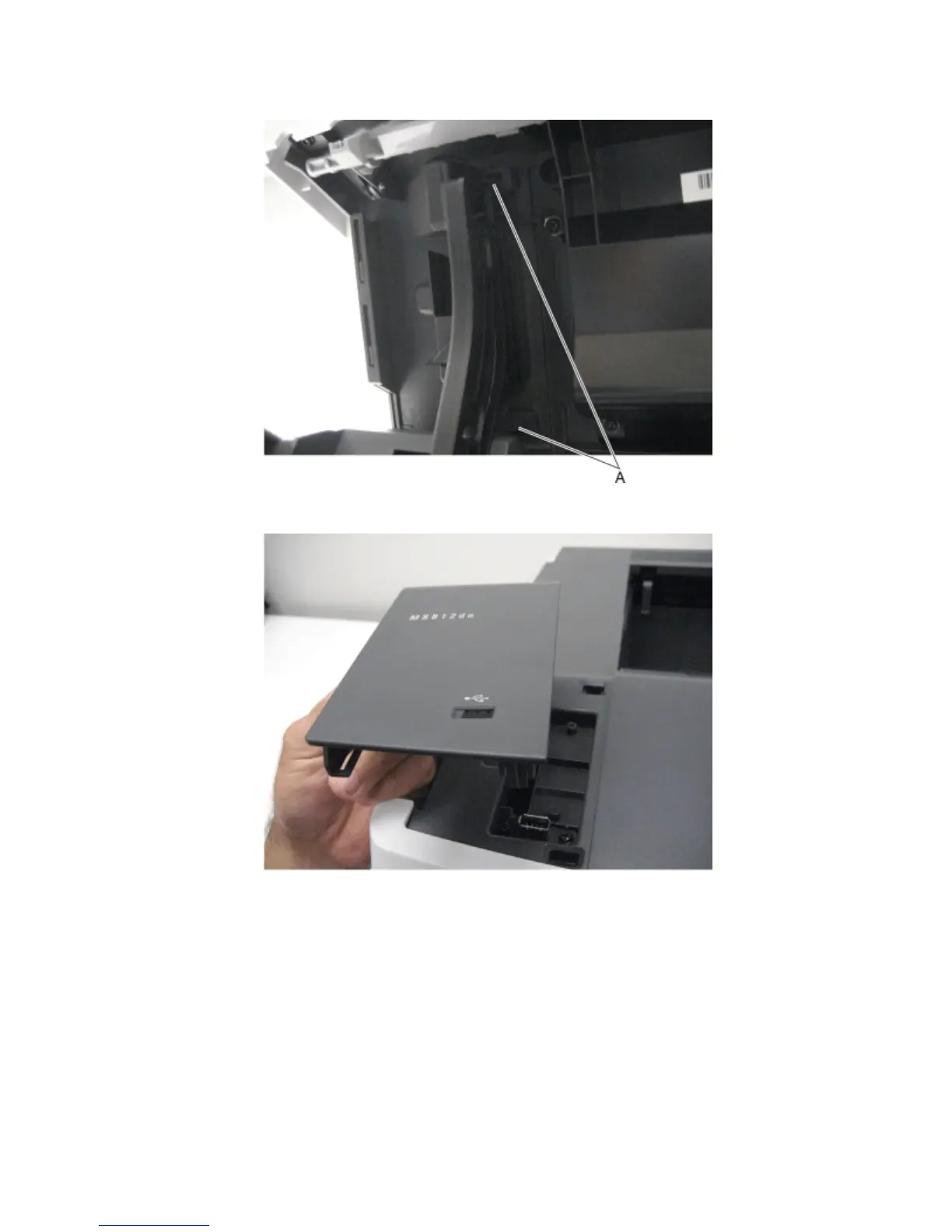

4 Release the two hooks (A) securing the control panel left bezel to the machine.
5 Remove the control panel left bezel.
Left control panel hinge removal
1 Remove the left cover. See “Left cover removal” on page 273.
2 Remove the right cover. See “Right cover removal” on page 278.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 278.
5 Remove the upper redrive. See “Upper redrive removal” on page 325.
4063
Repair information
391
