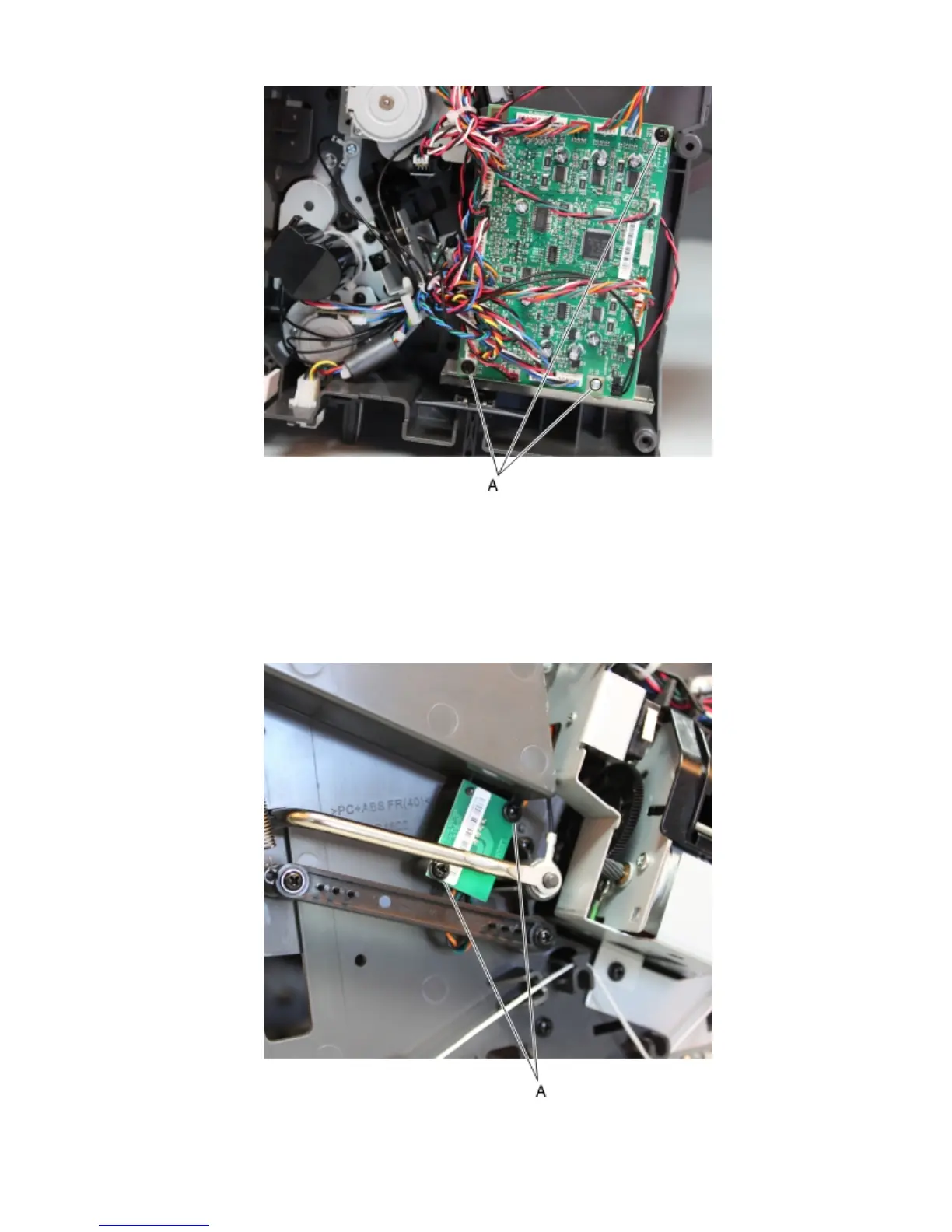

3 Remove the controller PCBA.
Sensor (bin full send) removal
1 Remove the right cover. See “Stapler right cover removal” on page 464.
2 Remove the two screws (A) from the sensor.
4063
Repair information
487
