Output expander controller PCBA removal
1 Remove the left cover. See “Output expander left cover removal” on page 443.
2 Disconnect all the cables (J7, J10, J3, J1, J2, J14, J6, J4 and J5) from the controller PCBA.

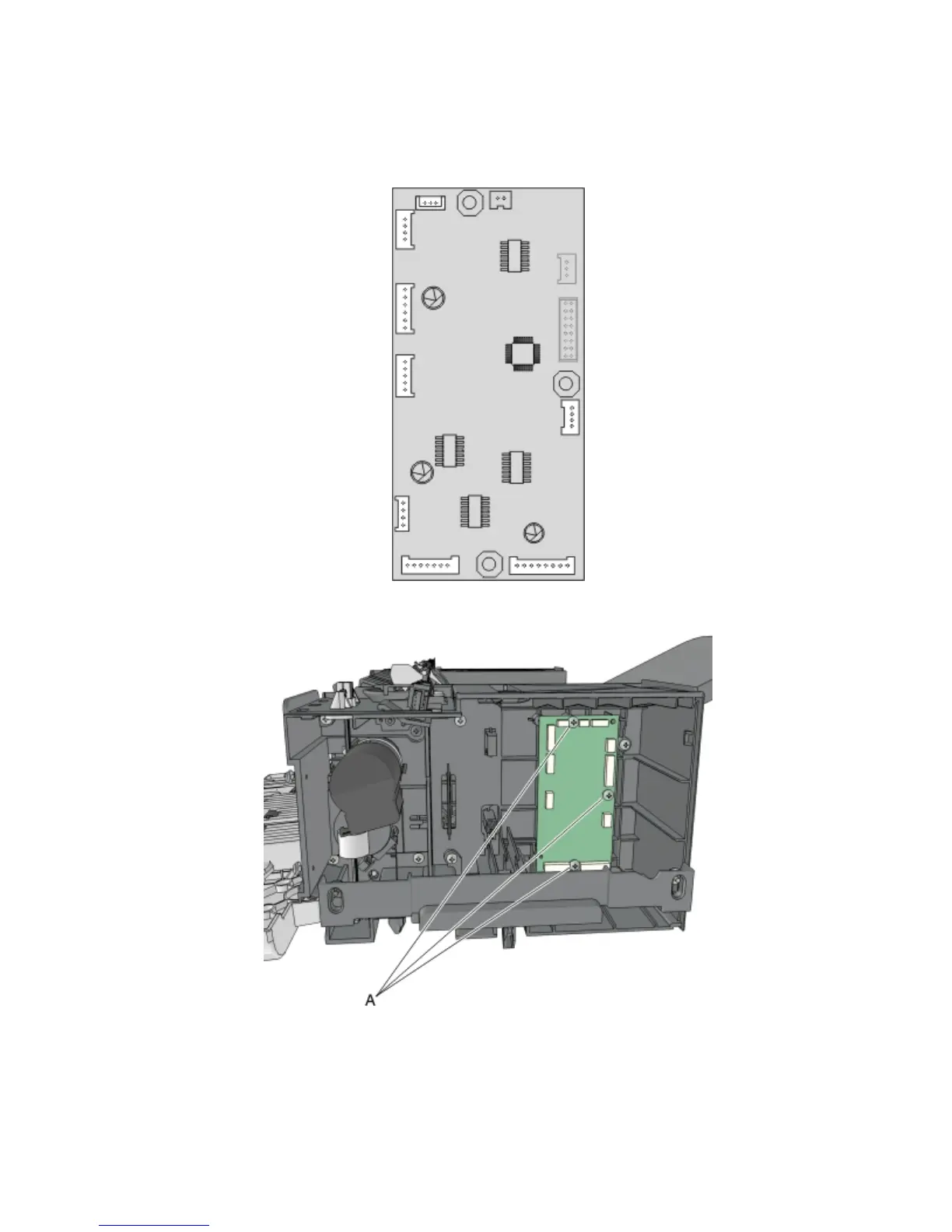

3 Remove the three screws (A), then remove the controller PCBA.
4063
Repair information
445
