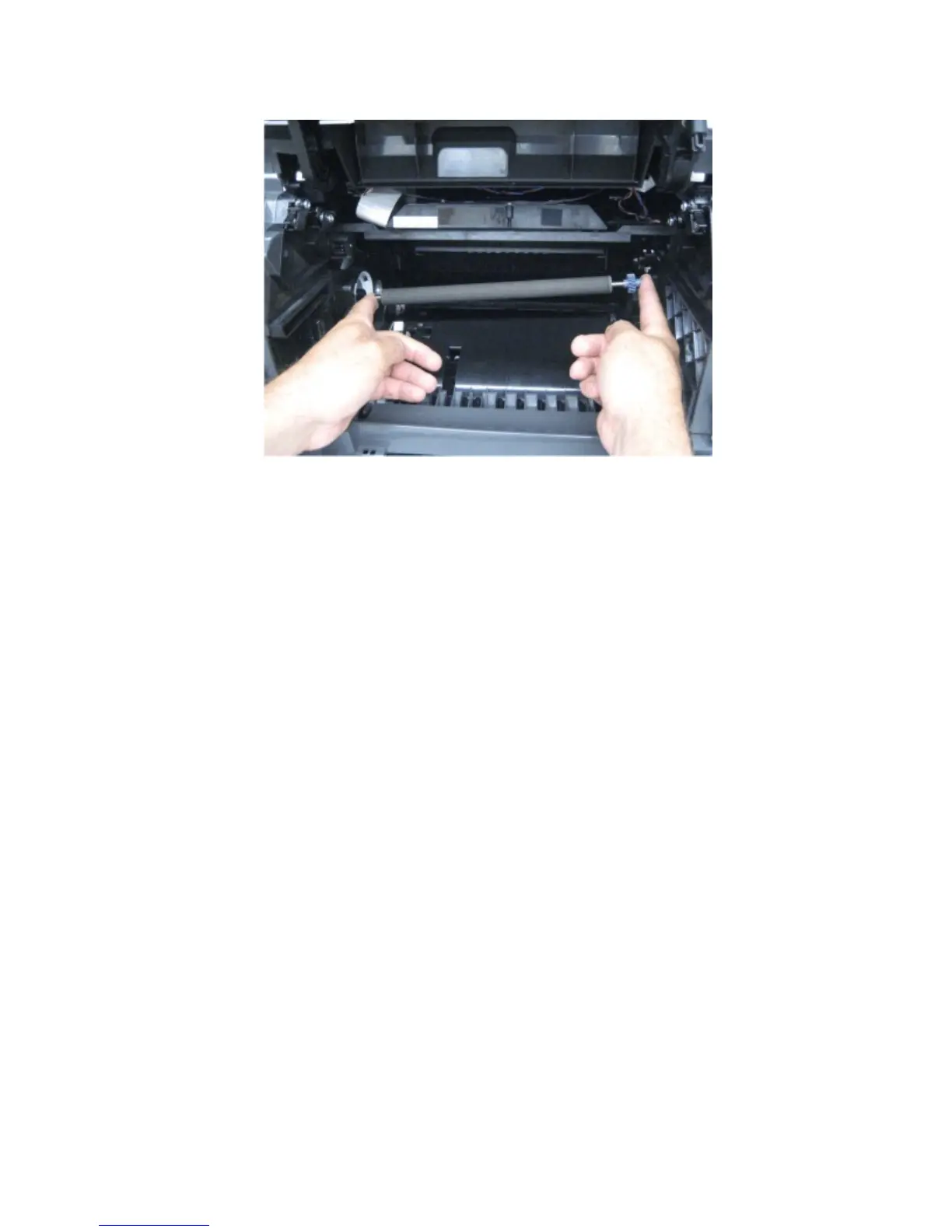

7 Remove the transfer roller.
Base printer - rear removals
• “Duplex motor removal” on page 314
•
“Fuser removal” on page 316
• “Fuser access door removal” on page 318
• “Left frame pivot removal” on page 319
•
“Output bin sensor cover removal” on page 320
• “Right frame pivot removal” on page 321
•
“Sensor (rear door interlock) removal” on page 322
Duplex motor removal
1 Remove the paper tray from the machine.
2 Remove the rear door. See “Rear door removal” on page 280.
3 Remove the rear lower cover. See “Rear lower cover removal” on page 276.
4 Remove the fuser access door. See “Fuser access door removal” on page 318.
4063
Repair information
314
