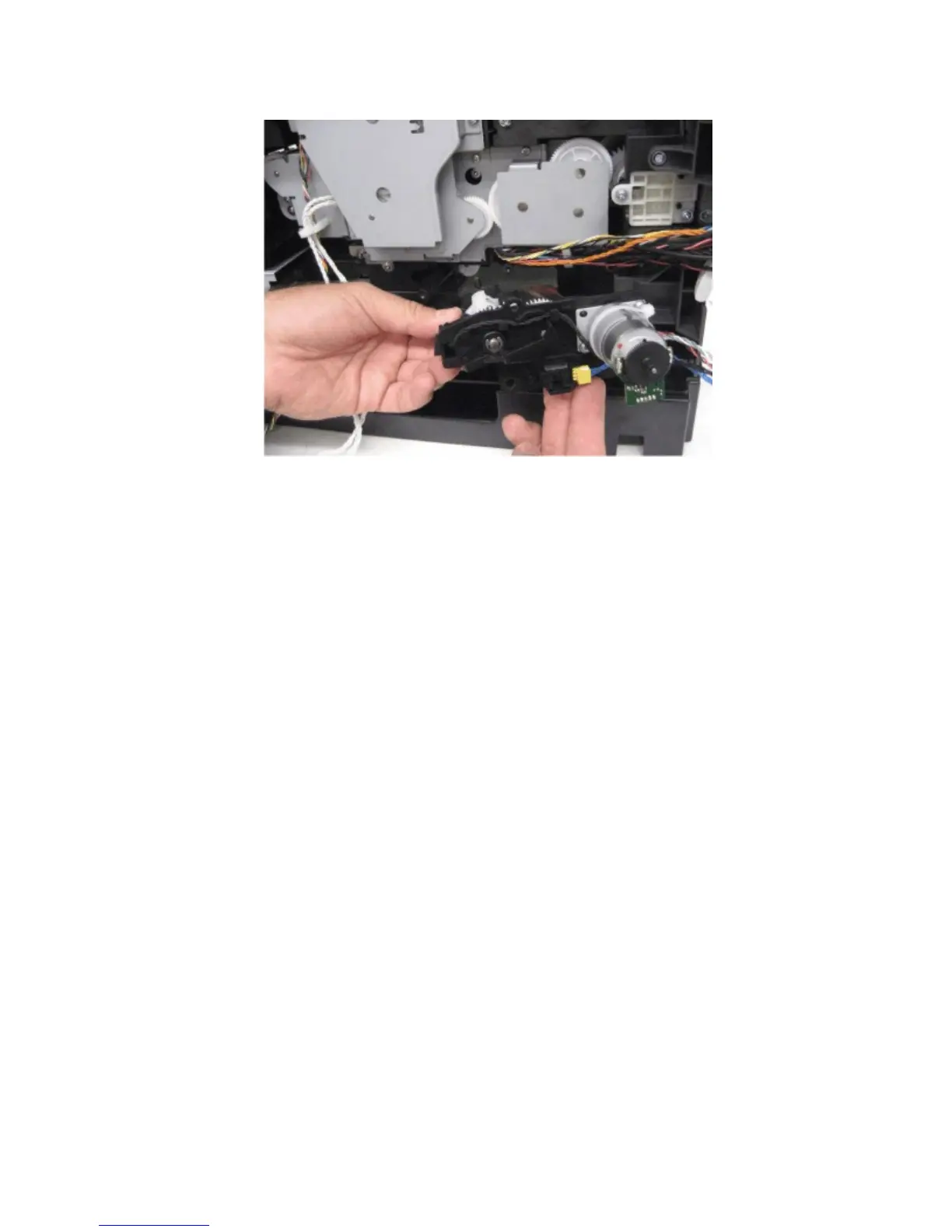

8 Remove the media feeder.
PCBA housing removal
Note: When removing the PCBA housing, the controller board will remain attached to the PCBA housing.
1 Remove the right cover. See “Right cover removal” on page 278.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 276.
3 Remove the LVPS. See “LVPS removal” on page 357.
4 Remove the left cover. See “Left cover removal” on page 273.
5 Disconnect all of the cables from the controller board.
4063
Repair information
348
