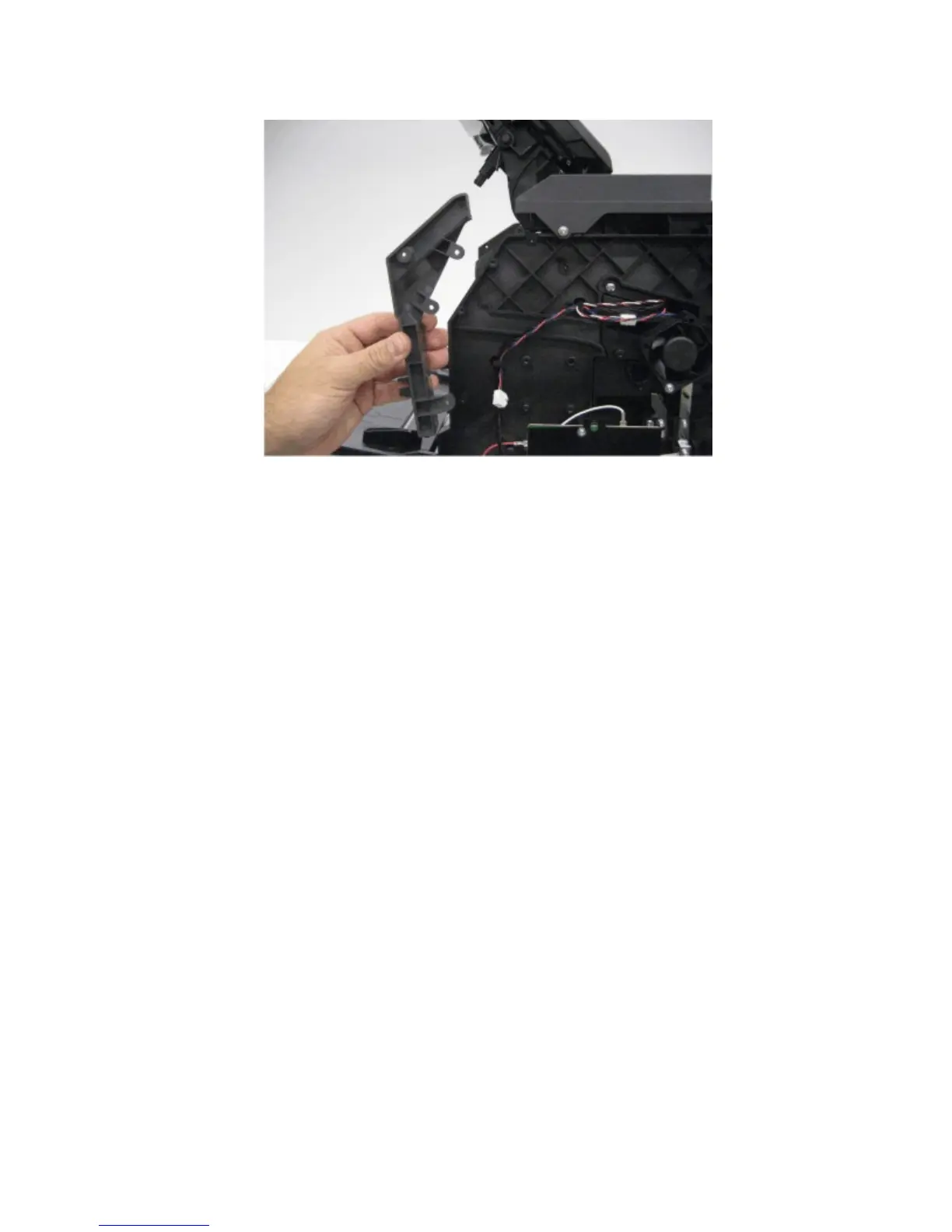

9 Remove the left inner cover.
Media aligner roller removal
Installation warning: When you reinstall the media aligner roller, you will have to adjust the media alignment. See
“Media aligner roller adjustment” on page 269.
Warning—Potential Damage: When removing the media aligner, ensure that you retain the attached spring.
1 Remove the left cover. See “Left cover removal” on page 273.
2 Remove the media tray. See “Media tray removal” on page 332.
3 Remove the MPF tray. See “MPF tray removal” on page 303.
4 Remove the front door. See “Front door removal” on page 284.
5 Remove the toner cartridge.
6 Remove the imaging unit.
7 Remove the media turn guide. See “Media turn guide removal” on page 295.
8 Remove the MPF pick roller. See “MPF pick roller removal” on page 301.
9 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 298.
10 Remove the media vertical guide. See “Media vertical guide removal” on page 296.
11 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 282.
12 Remove the inner guide deflector. See “Inner guide deflector removal” on page 285.
13 Remove the three screws (A) securing the media aligner roller to the machine.
4063
Repair information
293
