Lexmark MS81 Series - Page 288

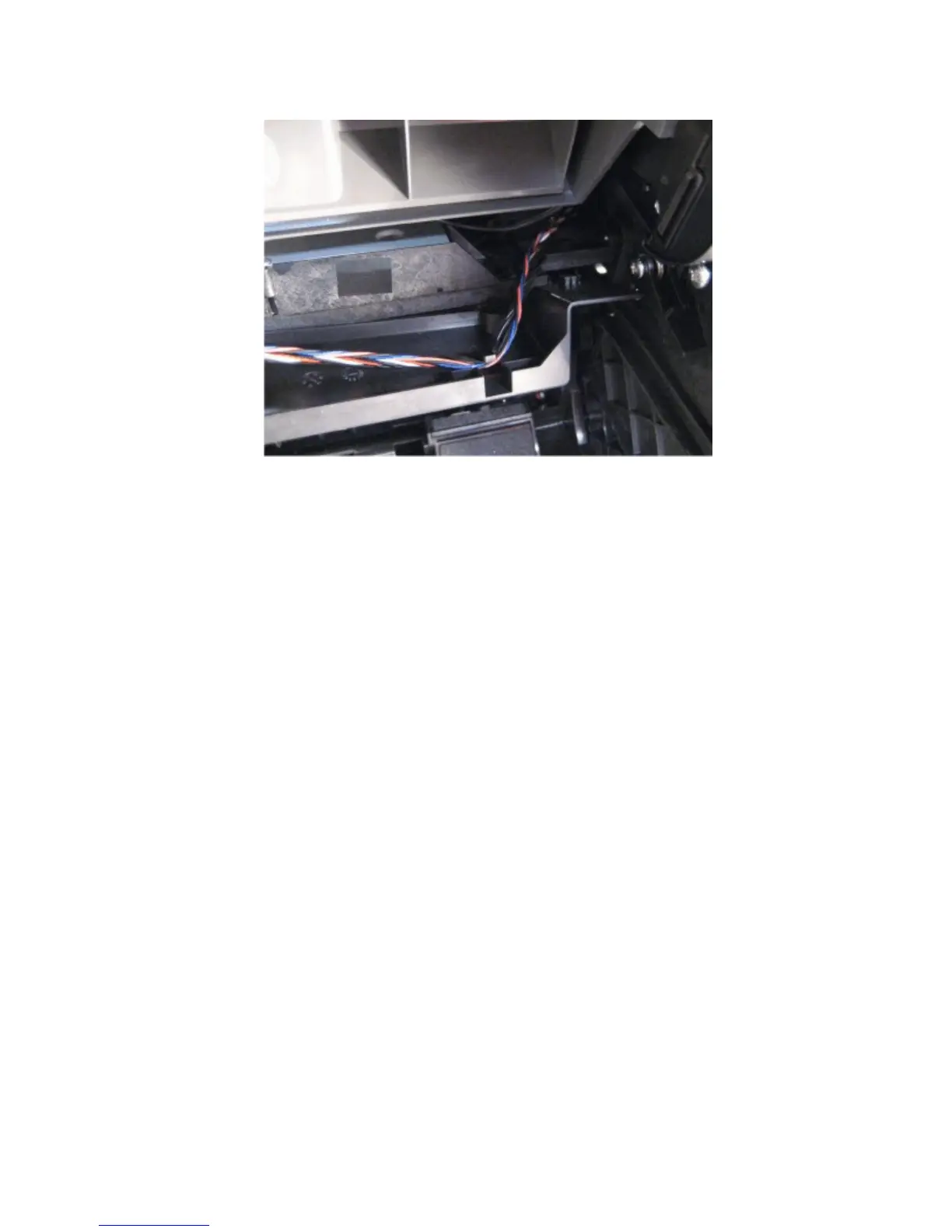

5 Remove all of the harnesses from the back side of the printhead access cover.
6 Raise the paper support on top of the printer to provide access to the printhead mounting screws.
7 Remove the three 5.5mm hex screws (B) securing the laser printhead to the machine.
Note: Ensure the screws do not fall inside the machine.
4063
Repair information
288
