Lexmark MS81 Series - Page 290

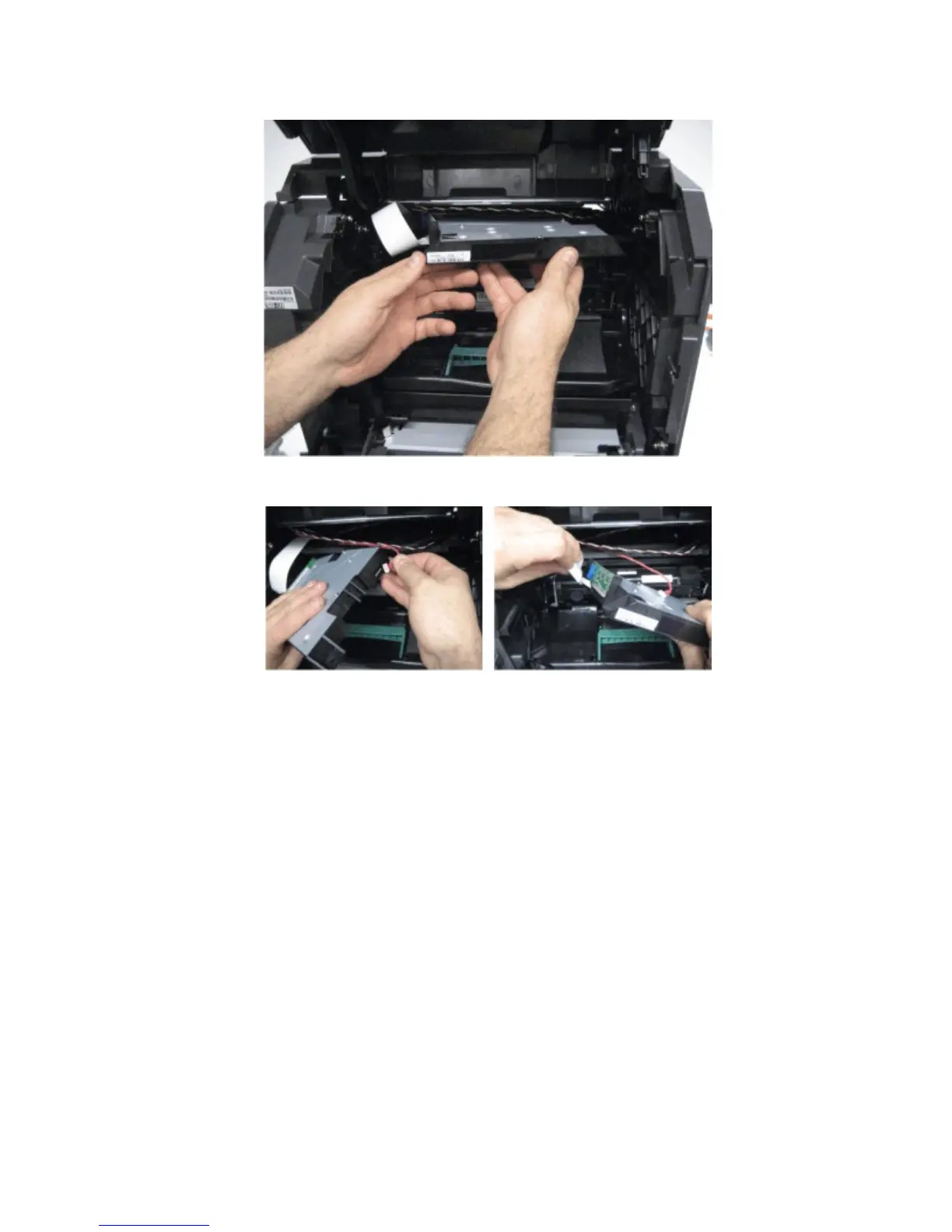

8 Gently lift and then remove the laser printhead from the machine.
9 Disconnect the two cables from the laser printhead.
Installation note: When the new laser printhead has been installed, complete the polygon printhead mechanical
registration adjustment procedure, as needed. See “Polygon printhead mechanical registration adjustment” on
page 270.
4063
Repair information
290
