6 Remove the imaging unit.
7 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 298.
8 Remove the media turn guide. See “Media turn guide removal” on page 295.
9 Remove the media vertical guide. See “Media vertical guide removal” on page 296.
10 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 282.
11 Remove the inner guide deflector. See “Inner guide deflector removal” on page 285.

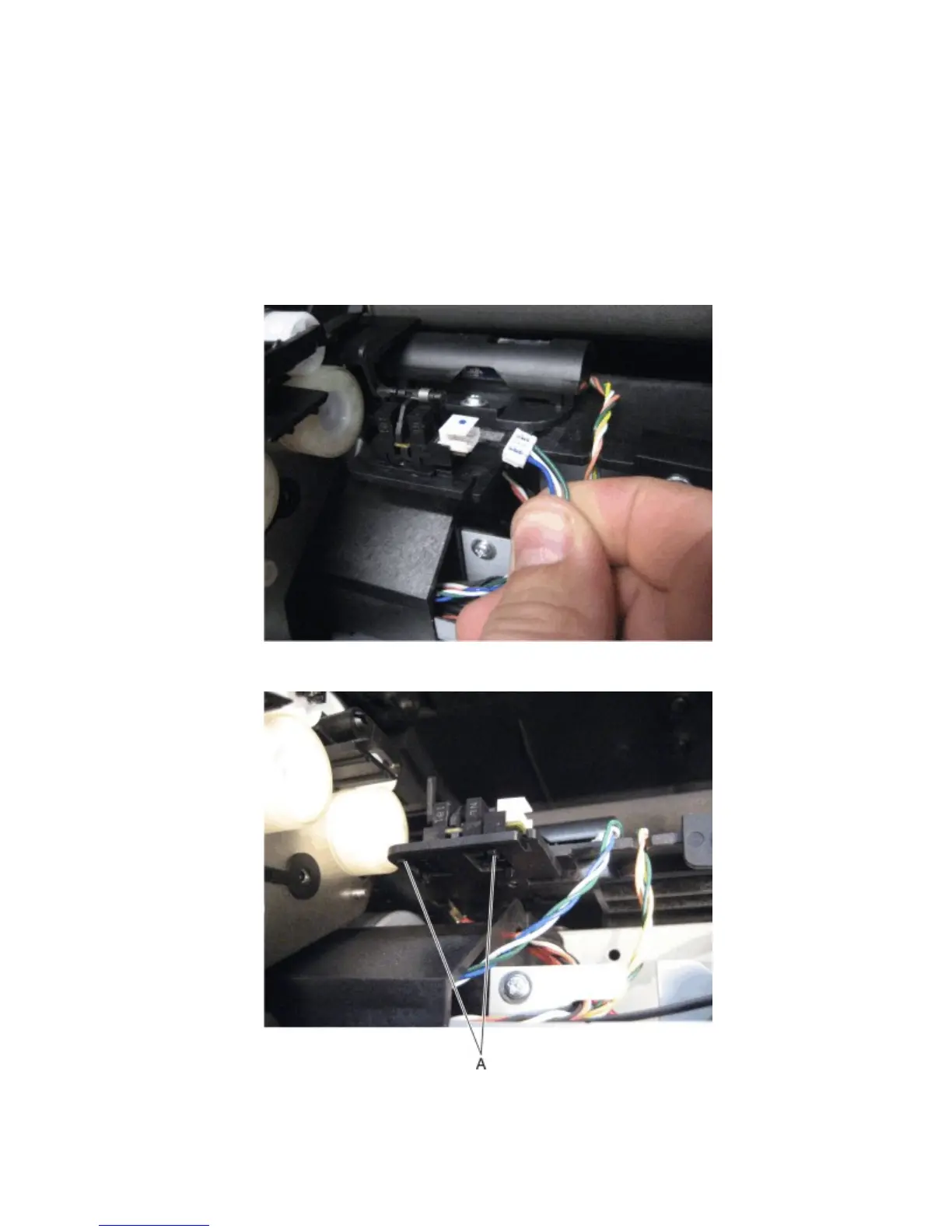

12 Disconnect the cable from the sensor (input).
13 Release the hooks (A) securing the sensor (input) to the machine.
14 Remove the sensor (input).
4063
Repair information
306
