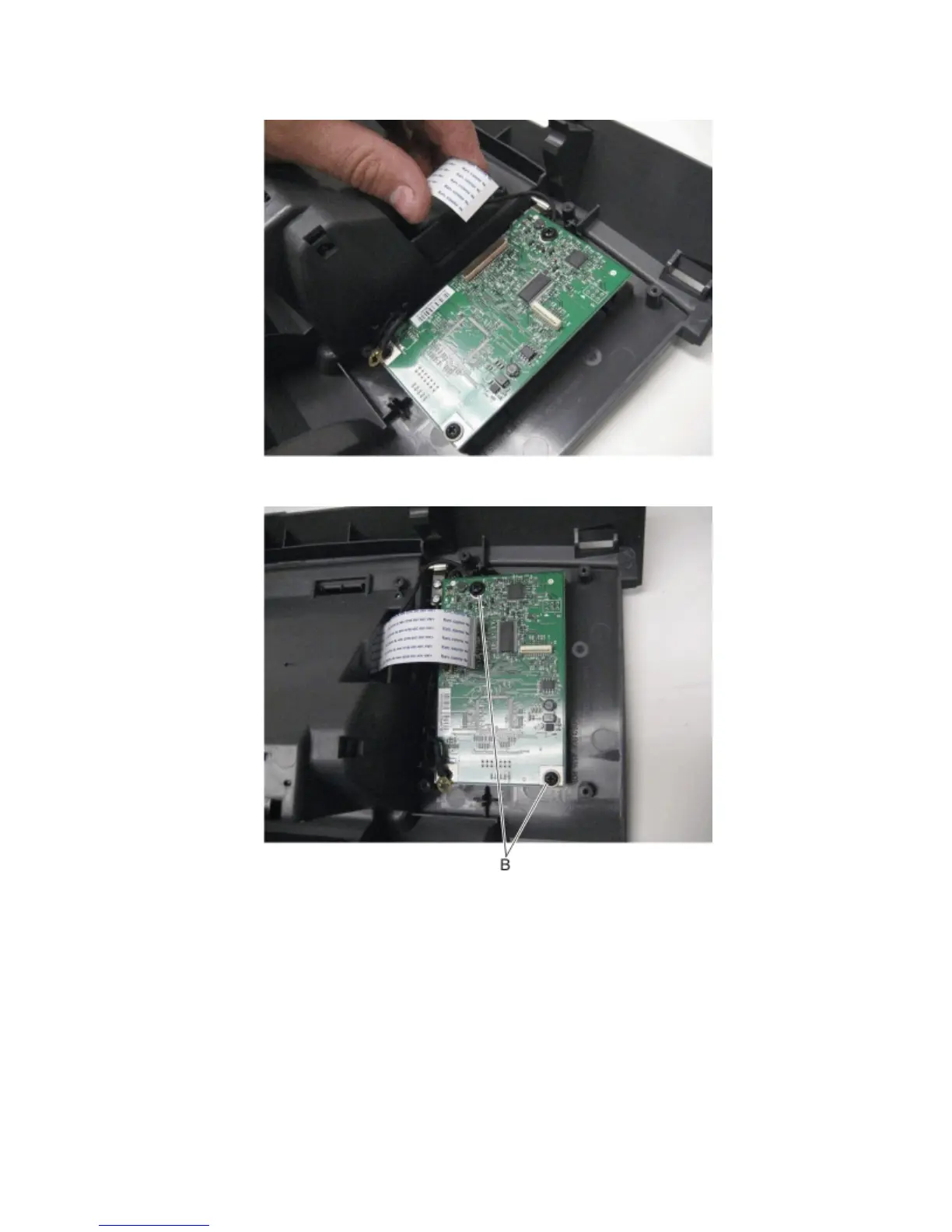

7 Disconnect the display ribbon cable from the control panel board.
8 Remove the four screws (B) securing the control panel board (7” tilting display) to the control panel.
4063
Repair information
386
