256
Technical Specification

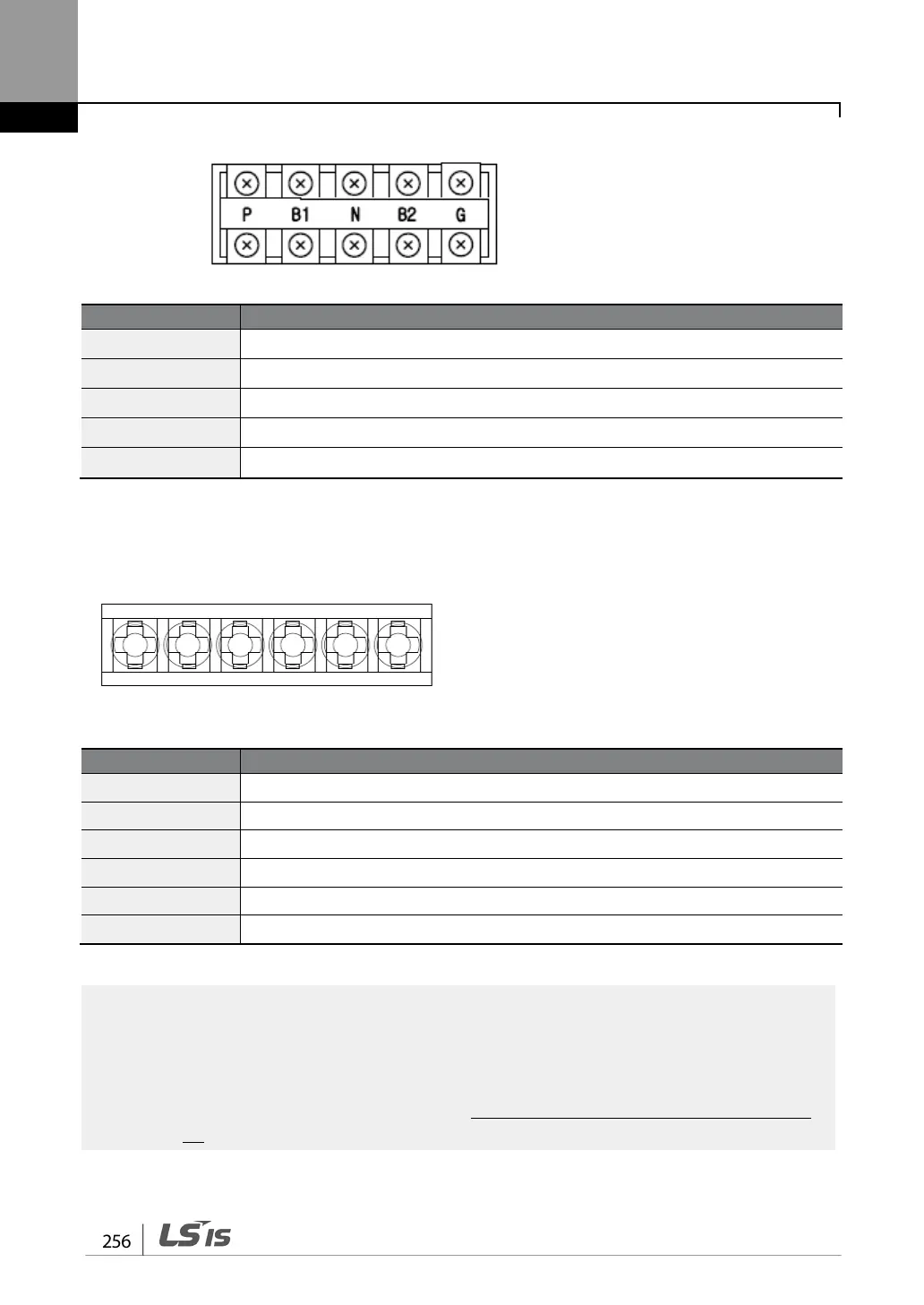

Group 3:
Terminals
Functions
G Ground Terminal
B2 Terminal for connection with B2 of DBU
B1 Terminal for connection with B1 of DBU
N Terminal for connection with N of Inverter
P Terminal for connection with P1 of Inverter
Group 4,5:
Terminals
Functions
P(+) Terminal for connection with P of Inverter
N(-) Terminal for connection with N of Inverter
B1 Terminal for connection with B1 of DBU
B2 Terminal for connection with B2 of DBU
N.C Unused
E Ground Terminal
Note
You must refer to dynamic braking unit manual for choice the braking resistor to use the dynamic
braking unit.
For detailed information on DBU wiring, refer to 2.2 Cable Wiring, Step 7 Selecting the brake unit
on page16.
P(+) N(-) B1 B2 N.C E
