Installing the Inverter
30~75kW (3-phase)

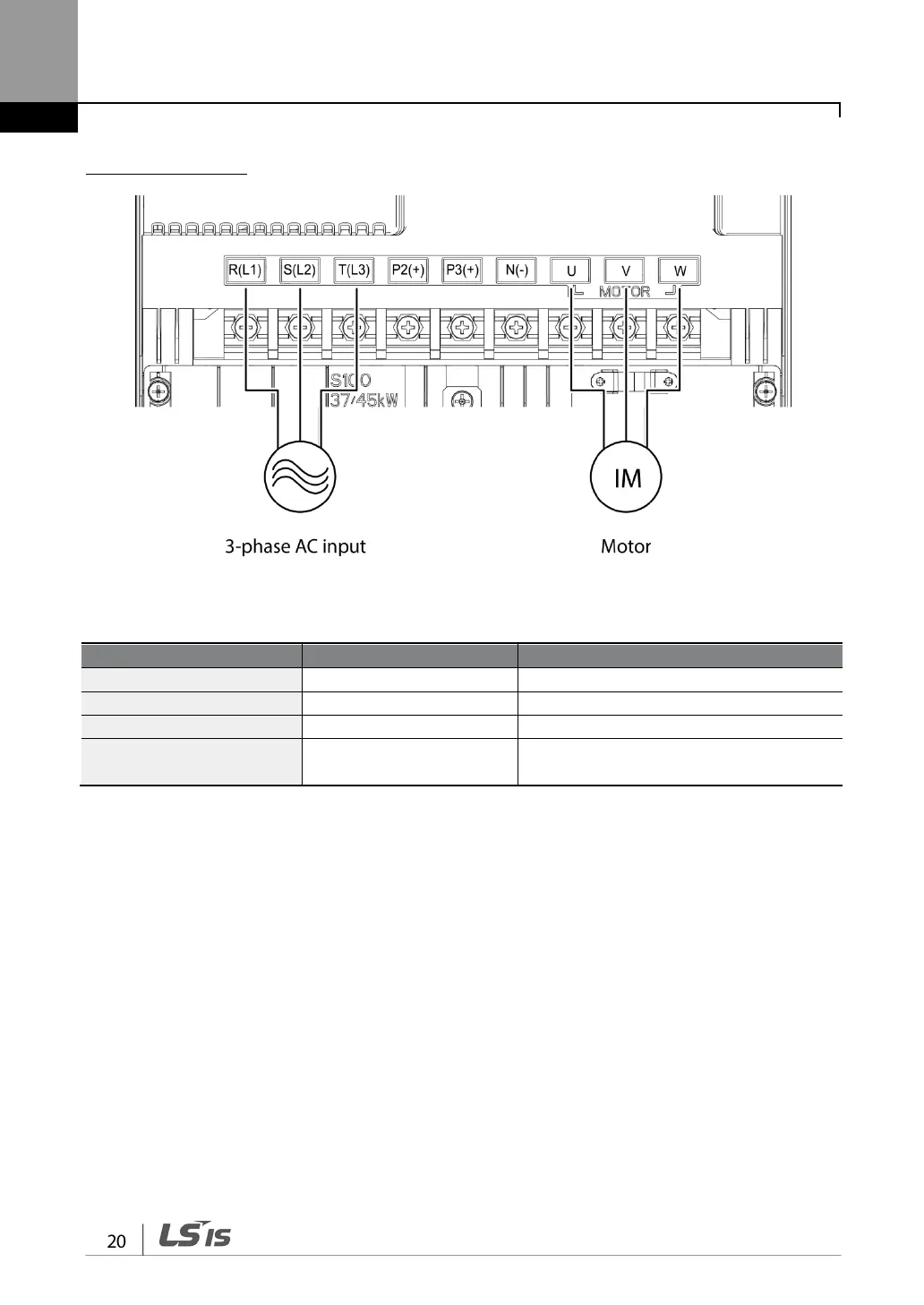

Power Terminal Labels and Descriptions
Terminal Labels
Name
Description
R(L1)/S(L2)/T(L3)
AC power input terminal
Mains supply AC power connections.
P2(+)/N(-)
DC link terminal
DC voltage terminals.
P3(+)/N(-)
Brake unit terminals
Brake unit wiring connection.
U/V/W Motor output terminals
3-phase induction motor wiring
connections.
