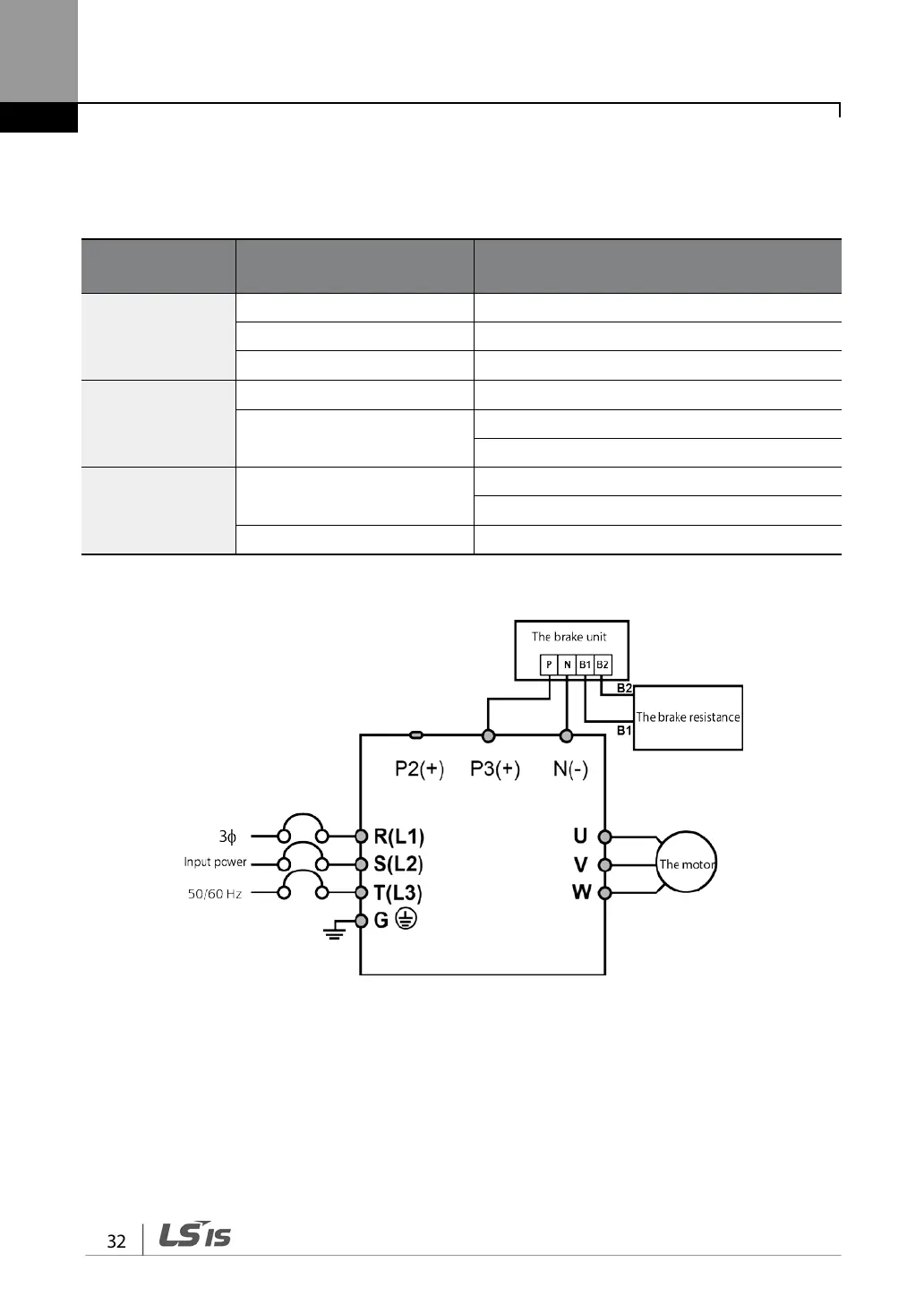

Installing the Inverter
Step 7 Selecting the brake unit
Select the brake unit as following:
UL form Capacity of applied motor Braking unit
UL type
(A type)
30~37kW SV370DBU-4U
45~55kW SV550DBU-4U
75kW SV750DBU-4U
Non UL type
(B type)
30~37kW SV037DBH-4
45~75kW
SV075DBH-4
SV075DB-4
Non UL type
(C type)
30~37kW
LSLV0370DBU-4HN
LSLV0370DBU-4LN
45~75kW LSLV0750DBU-4LN
Step 8 Re-assembling the Covers and Routing Bracket
Re-assemble the cable routing bracket and the covers after completing the wiring and basic
configurations. Note that the assembly procedure may vary according to the product group or
frame size of the product.
