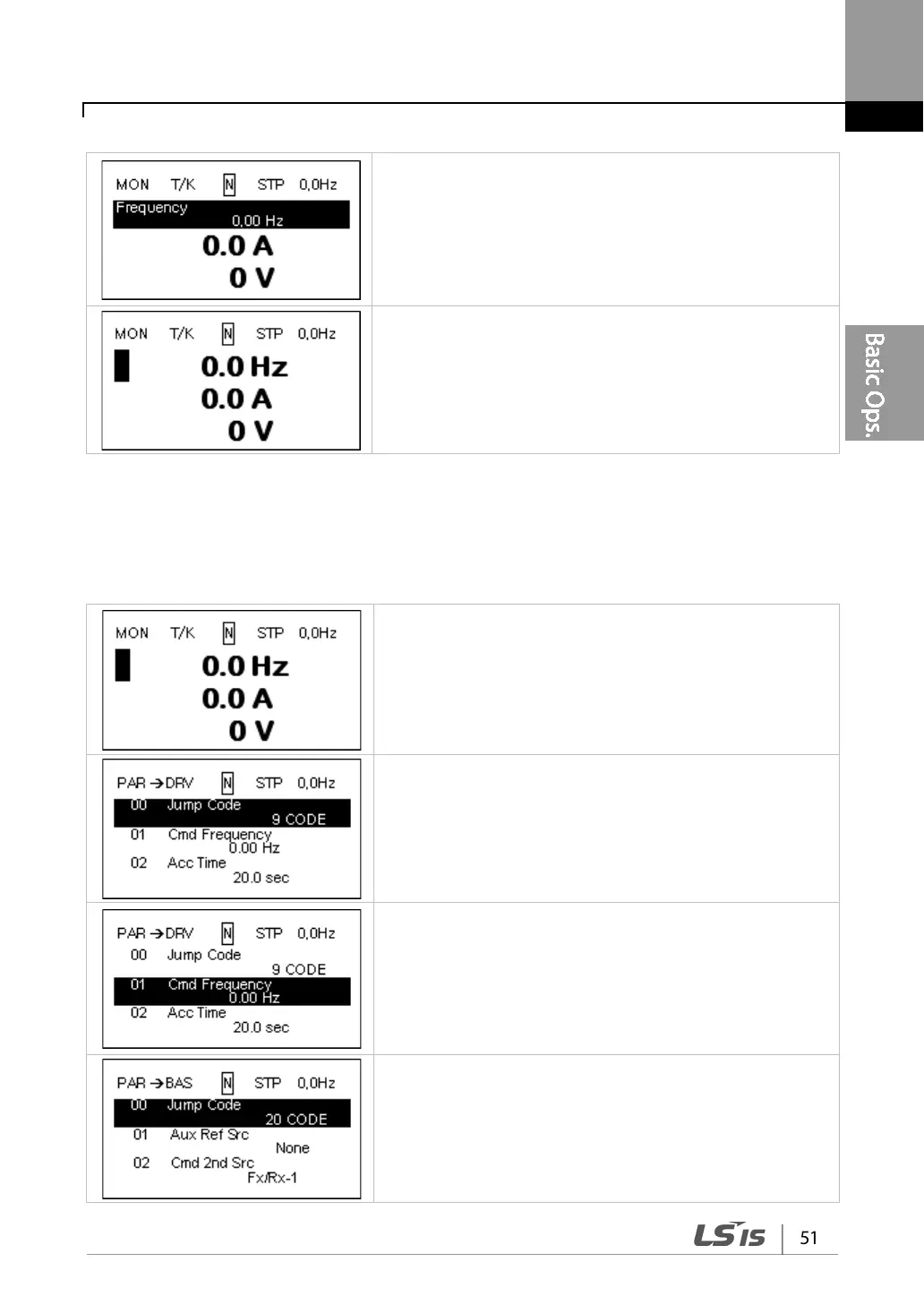

Learning to Perform Basic Operations
• Information about the first item in Monitor mode
(Frequency) is displayed.
• Information about the first item in Monitor mode
(Frequency) disappears and the cursor appears to the left
of the first item.
Code Navigation in Parameter mode
The following examples show you how to move through codes in different function groups (Drive
group and Basic group) in Parameter mode. In parameter mode, press the [▲] or [▼] key to move
to the desired functions.
• When the power is on, monitor mode is displayed.
• Press the [MODE] key.
• Drive group (DRV) in Parameter mode is displayed. If any
other group is displayed, press the [MODE] key until the
Drive group is displayed, or press the [ESC] key.
• Press the [▼] key to move to the second code (DRV-01) of
Drive group.
• Press the [▶] key
• Basic group is displayed.
• Press the [▲] or [▼] key to move to the desired codes and
configure the inverter functions.
