Learning to Perform Basic Operations
How to use the status bar
On the top-right corner of the display, there is a display item. This item is displayed as long as the
inverter is on, regardless of the mode the inverter is operating in.

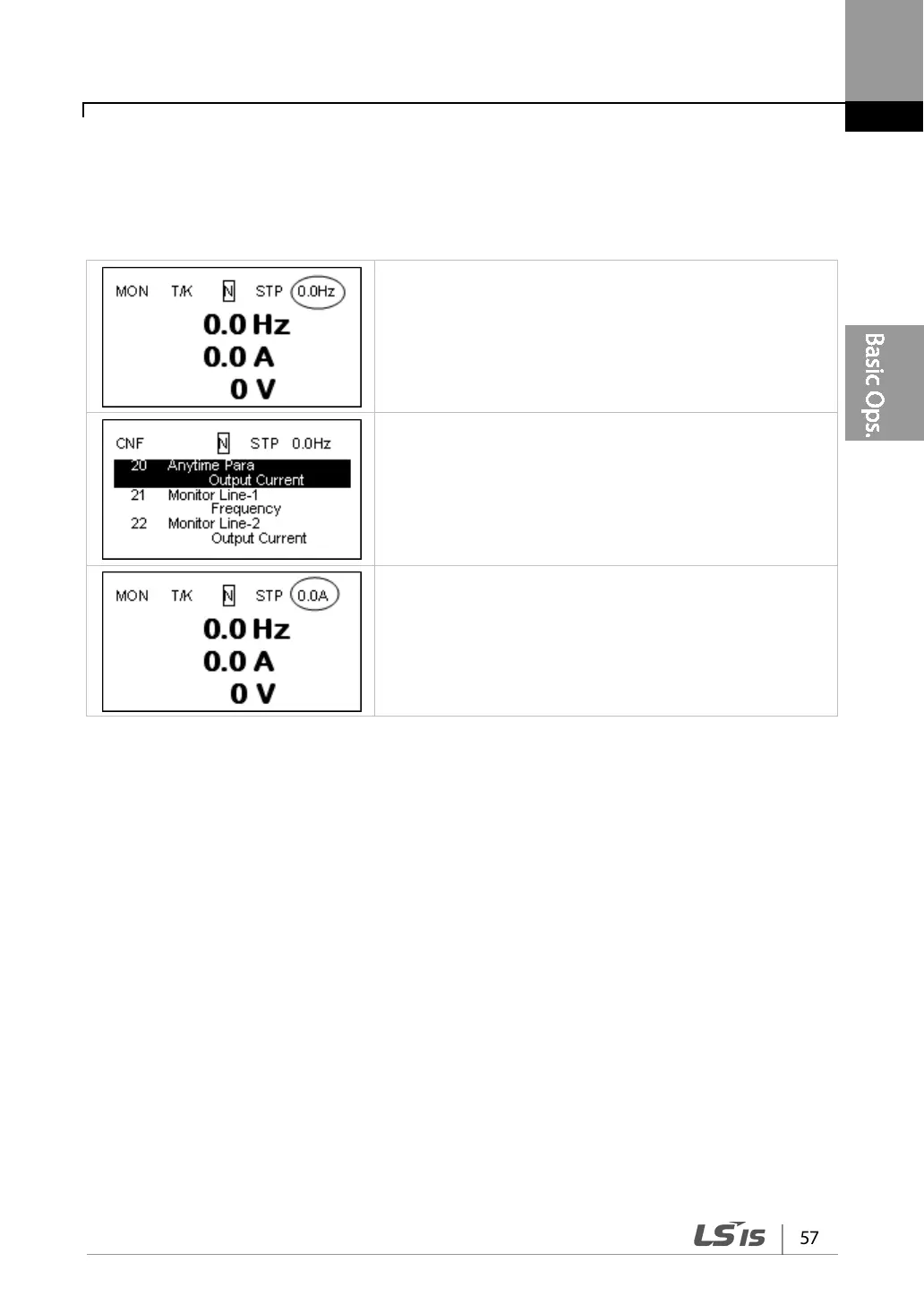

• Monitor mode
• In the top-right corner of the display, the frequency
reference is displayed (factory default).
• Enter Config mode and go to CNF-20 to select the item to
display.
• Press the [PROG/ENT] key to change the item to ‘Output
Cur rent.’
• On the top-right corner of the display, the unit changes
from ‘Frequency’ to ‘Current.’
• In monitor mode, the status bar item is changes to
‘Current.’
