LSIS XEC-DP64H User Manual

Chapter 2 General Specification
2-5

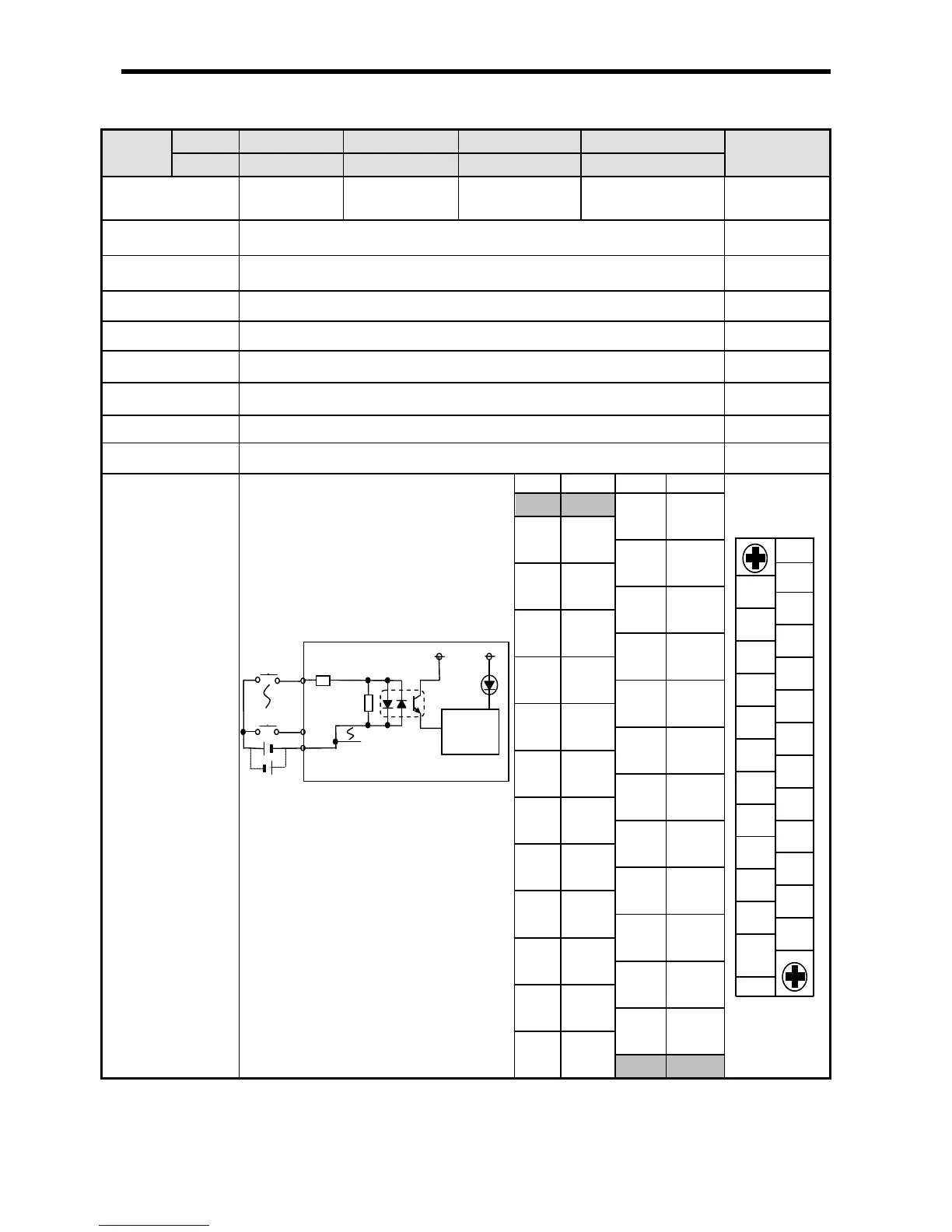

(2) Compact standard type input contact point specification
Contact
point
no.
X axis P0008 P0009 P000C P000D
Ref.
Y axis P000A P000B P000E P000F
Signal name
External
lower limit
External upper
limit
DOG HOME
Rated input
voltage
DC24V (DC20.4~28.8V (-15/20%, ripple rate 5% or less))
Rated input
current
About 4 ㎃/24V
Insulation method Photo coupler insulation
Input impedance
About 5.6 ㏀
On voltage/current DC 19V or above /3.4 ㎃ or above
Off voltage/current
DC 6V or less/1.1 ㎃ or less
Response time
0.5 ㎳ or less (when used for input for positioning)
Min. input width
200 ㎲ or above
Circuit configuration
and terminal array
No. Contact No. Contact
TB1 RX
TB2 485+
TB3 TX
TB4 485-
TB5 SG
TB6 00
TB7 01
TB8 02
TB9 03
TB10 04
TB11 05
TB12 06
TB13 07
TB14 08
TB15 09
TB16 0A
TB17 0B
TB18 0C
TB19 0D
TB20 0E
TB21 0F
TB22 10
TB23 24G
TB24
COM
For XBC-DN20S(U), there is no actual input point P0000C ~ P0000F. If you want to use them, turn on by
user program.
TB1
TB24
TB23
TB22
TB21
TB20
TB19
TB18
TB17
TB16
TB15
TB14
TB13
TB12
TB11
TB10
TB9
TB8
TB7
TB6
TB5
TB4
TB3
TB2
TB1
TB24
TB23
TB22
TB21
TB20
TB19
TB18
TB17
TB16
TB15
TB14
TB13
TB12
TB11
TB10
TB9
TB8
TB7
TB6
TB5
TB4
TB3
TB2
DC24
Inner
circuit
R
11
TB6
COM
coupler
TB24
TB23
R
0
