LSIS XEC-DP64H User Manual

Chapter 2 General Specification
2-6

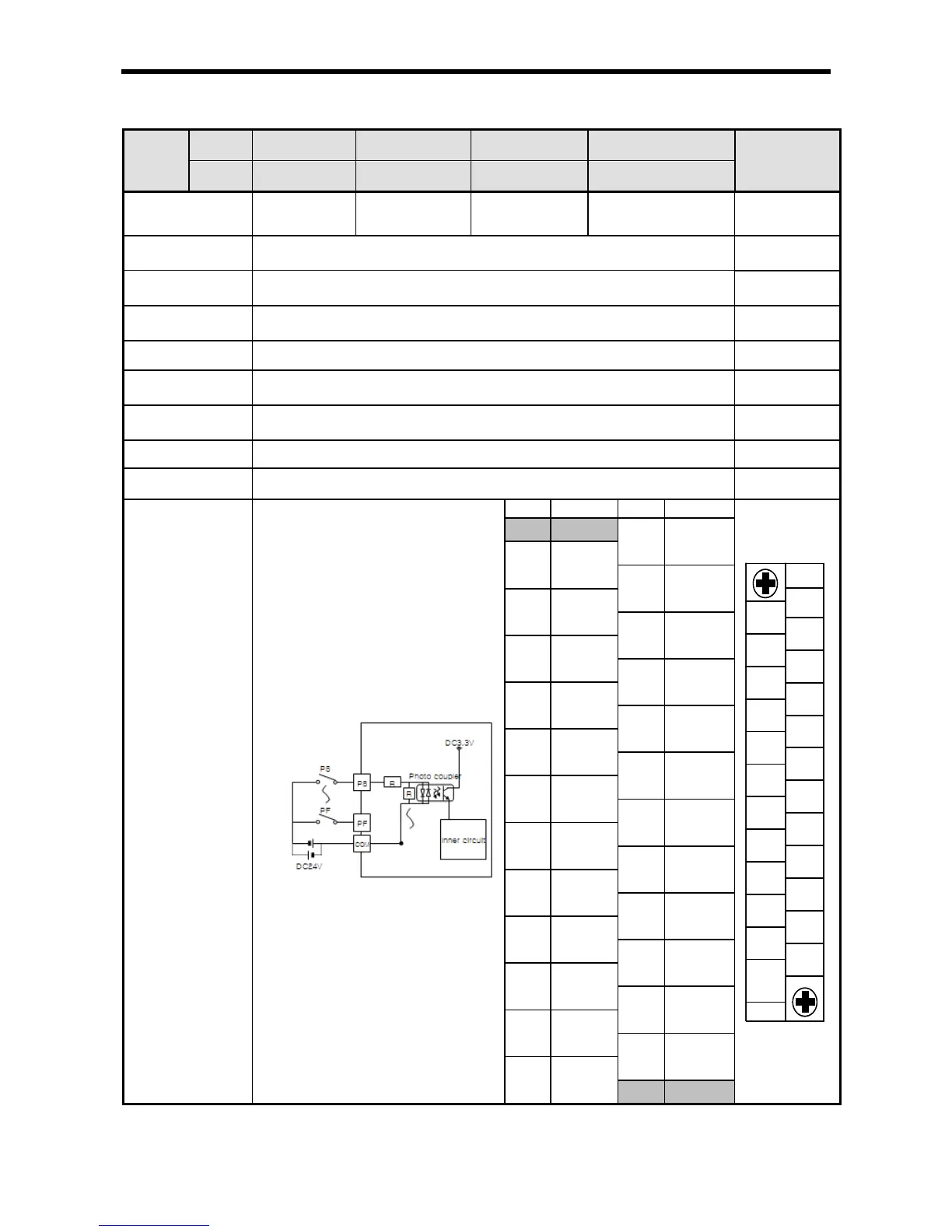

(3) Compact high end type input contact point specification
Contact
point
no.
X axis
P0008
%IX0.0.8
P0009
%IX0.0.9
P000C
%IX0.0.12
P000D
%IX0.0.13
Ref.
Y axis
P000A
%IX0.0.10
P000B
%IX0.0.11
P000E
%IX0.0.14
P000F
%IX0.0.15
Signal name
External
lower limit
External upper
limit
DOG HOME
Rated input
voltage
DC24V (DC20.4~28.8V (-15/20%, ripple rate 5% or less))
Rated input
current
About 4 ㎃/24V
Insulation
method
Photo coupler insulation
Input impedance
About 5.6 ㏀
On
voltage/current
DC 19V or above /3.4 ㎃ or above
Off
voltage/current
DC 6V or less/1.1 ㎃ or less
Response time 0.5 ㎳ or less (when used for input for positioning)
Min. input width 200 ㎲ or above
Circuit
configuration and
terminal array
No.
Contact
No.
Contact
TB1 RX
TB2 485+
TB3 TX
TB4 485-
TB5 SG
TB6
P00
IX0.0.0
TB7
P01
IX0.0.1
TB8
P02
IX0.0.2
TB9
P03
IX0.0.3
TB10
P04
IX0.0.4
TB11
P05
IX0.0.5
TB12
P06
IX0.0.6
TB13
P07
IX0.0.7
TB14
P08
IX0.0.8
TB15
P09
IX0.0.9
TB16
P0A
IX0.0.10
TB17
P0B
IX0.0.11
TB18
P0C
IX0.0.12
TB19
P0D
IX0.0.13
TB20
P0E
IX0.0.14
TB21
P0F
IX0.0.15
TB22 COM
TB23 24G
TB24 24V
TB1
TB24
TB23
TB22
TB21
TB20
TB19
TB18
TB17
TB16
TB15
TB14
TB13
TB12
TB11
TB10
TB9
TB8
TB7
TB6
TB5
TB4
TB3
TB2
TB1
TB24
TB23
TB22
TB21
TB20
TB19
TB18
TB17
TB16
TB15
TB14
TB13
TB12
TB11
TB10
TB9
TB8
TB7
TB6
TB5
TB4
TB3
TB2
