215651 182 Revision B
1. Lower the header onto blocks.
$
%

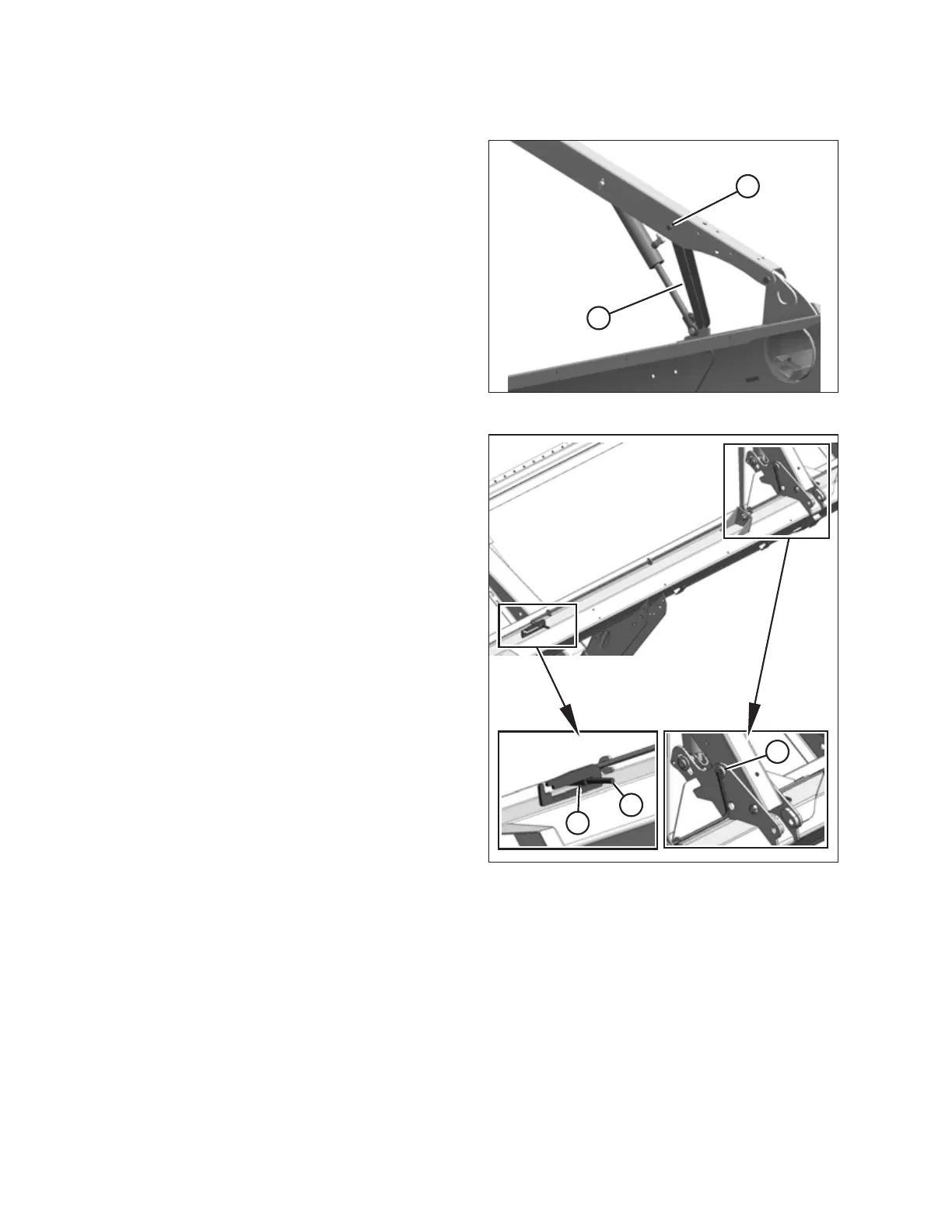

Figure 5.122: Engaged Reel Safety Prop – Left Shown
2. Raise the reel fully.
3. Move reel safety props (A) to the engaged position.
NOTE:
Keep pivot bolt (B) sufficiently tight that the prop remains
in the stored position when not in use, but can be engaged
using hand force.
4. Repeat the previous step on the opposite reel arm.
$
&
%
Figure 5.123: Reel Safety Prop – Center Arm
5. Use handle (A) to move the lock rod to inboard position (B),
which engages pin (C) under the prop.
6. Lower the reel until the safety props contact the outer arm
cylinder mounts and the center arm pins.
7. Shut down the engine, and remove the key from
the ignition.
MAINTENANCE AND SERVICING
