215651 188 Revision B
$

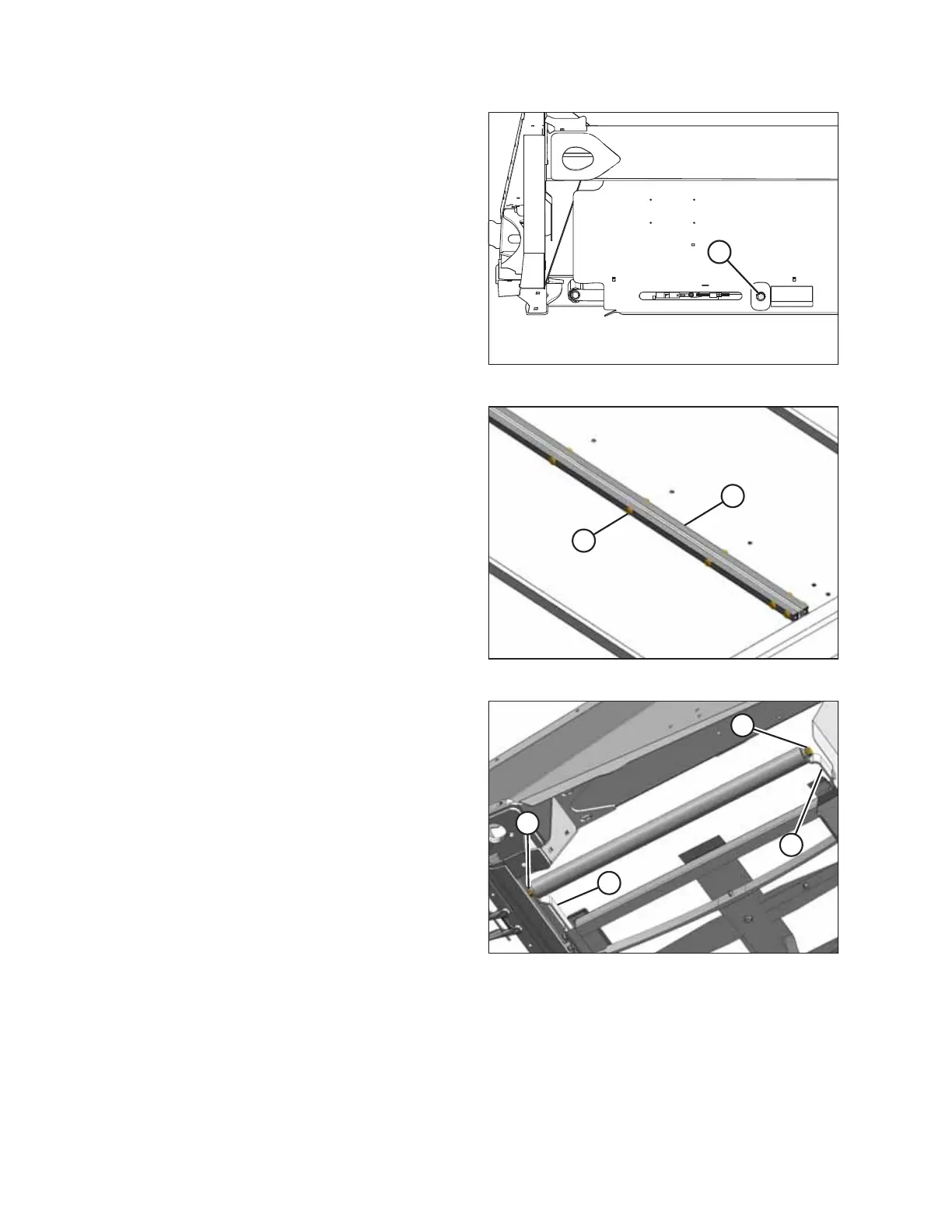

Figure 5.135: Tensioner
8. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
$
%
Figure 5.136: Draper Connector
9. Remove screws (A), tube connectors (B), and nuts from the
draper joint to uncouple the draper.
10. Pull the draper off the idler roller.
%
&
'
$
Figure 5.137: Idler Roller
11. Remove bolt (A) and washer from the idler roller at the
back of the header deck.
12. Remove bolt (B) and washer from the idler roller at the
front of the header deck.
13. Spread roller arms (C) and (D), and remove the idler roller.
MAINTENANCE AND SERVICING
