Replacing Draper Idler Roller Bearing
1. Remove draper deck idler roller. For instructions, refer to Removing Draper Idler Roller, page 187.

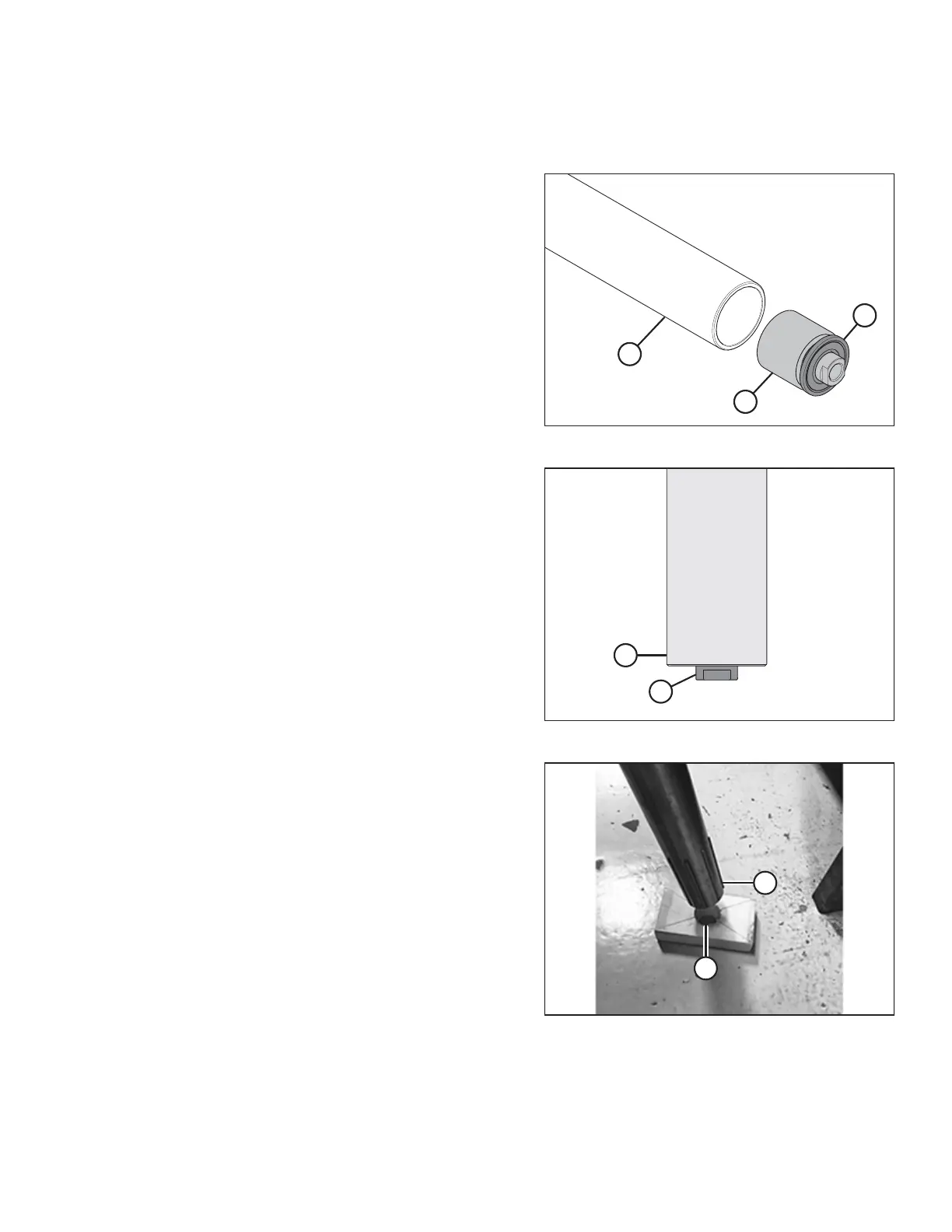

Figure 5.138: Idler Roller Bearing and Seal
2. Clamp idler roller (A) in a vise, with cloth wrapped around
the roller to prevent damage to the roller.
3. Use a slide hammer to remove bearing assembly (B) and
seal (C) from the roller.
Figure 5.139: Idler Roller
IMPORTANT:
When installing the new bearing, do NOT place the end of the
roller directly onto the ground. Bearing assembly (A) protrudes
past roller tube (B), and placing the end on the ground will push
the bearing farther into the tube.
Figure 5.140: Idler Roller
4. Cut a relief (A) into a block of wood.
5. Place the end of idler roller (B) onto the block, with the
protruding bearing assembly inside relief (A).
