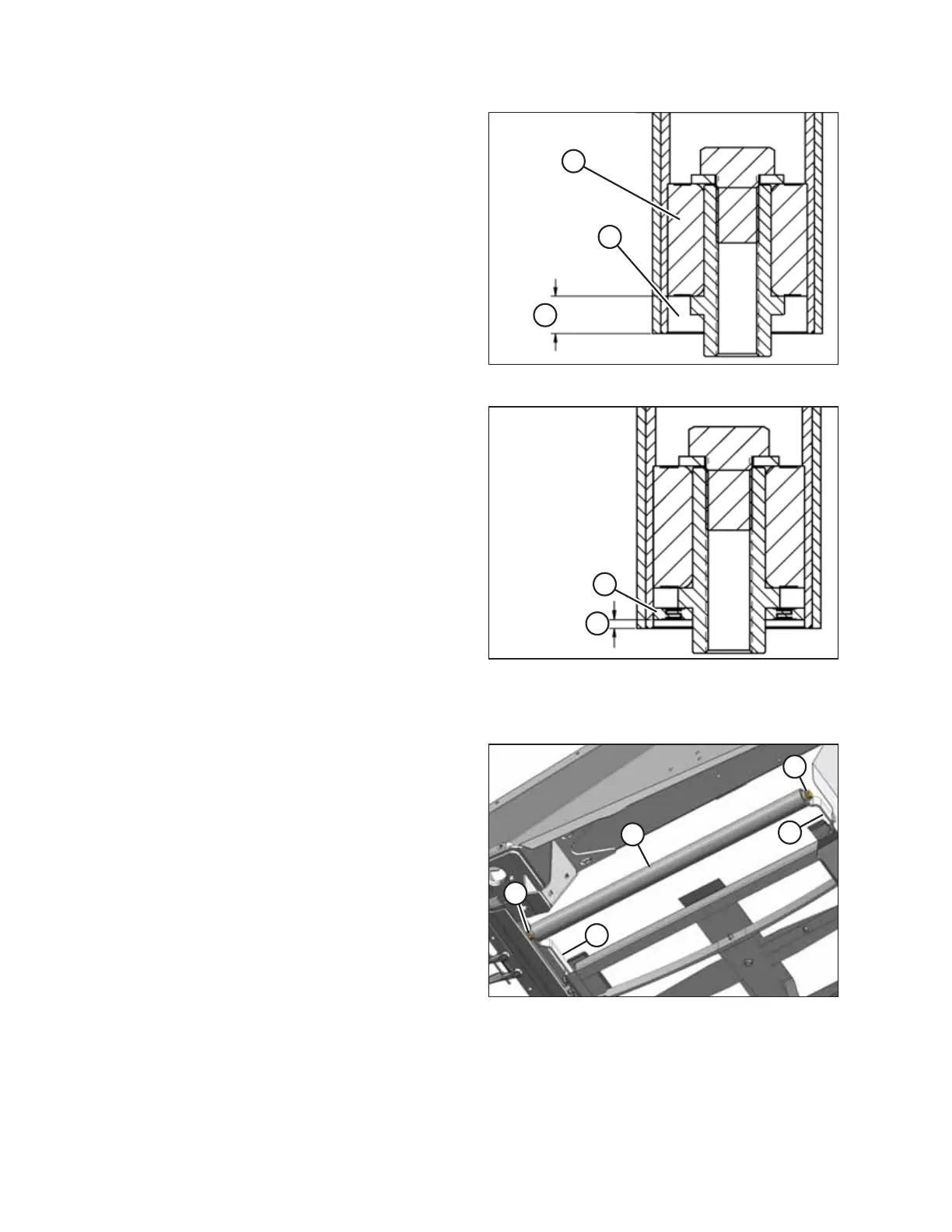

Figure 5.141: Idler Roller Bearing
6. Install new bearing assembly (C) by pressing the outer race
of the bearing into the tube until it is 14–15 mm
(9/16–19/32 in.) (B) from the outside edge of the tube.
NOTE:
Before installing new seal, fill area (A) with approximately
8 pumps of grease.
$
%
Figure 5.142: Idler Roller Bearing
7. Install new seal (A) by pressing on the inner and outer race
of the seal until it is 3–4 mm (1/8–3/16 in.) (B) from the
outside edge of the tube.
NOTE:
The seal can be oriented in either direction.
8. Reinstall idler roller. For instructions, refer to Installing
Draper Idler Roller, page 190.
Installing Draper Idler Roller
$
%
&
%
&
Figure 5.143: Idler Roller
1. Install idler roller (A) between idler arms (B), and secure
with two bolts (C) and washers. Tighten bolts to 95 Nm
(70 lbf·ft).
