7. Engage the header safety props.
$

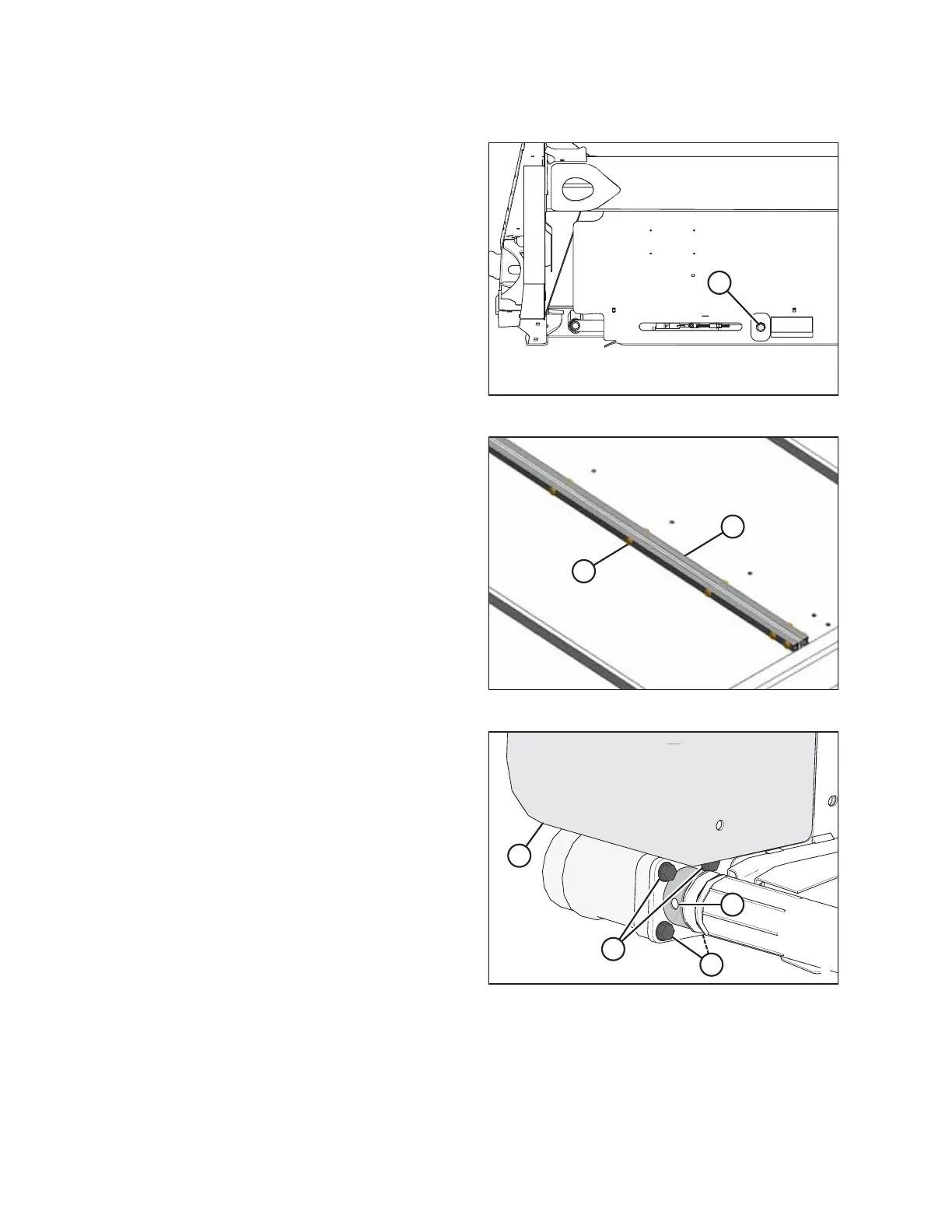

Figure 5.146: Draper Tensioner
8. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
$
%
Figure 5.147: Draper Connector
9. Remove tube connectors (B), screws (A), and nuts from the
draper joint.
10. Pull the draper off the drive roller.
$
&
%
%
Figure 5.148: Drive Roller
11. Align the set screws with hole (A) in the guard. Remove the
two set screws holding the motor onto the drive roller.
NOTE:
The set screws are 1/4 turn apart.
12. Remove four bolts (B) securing the motor to the drive
roller arm.
NOTE:
It may be necessary to remove plastic shield (C) to gain
access to the top bolt.
