215651 193 Revision B

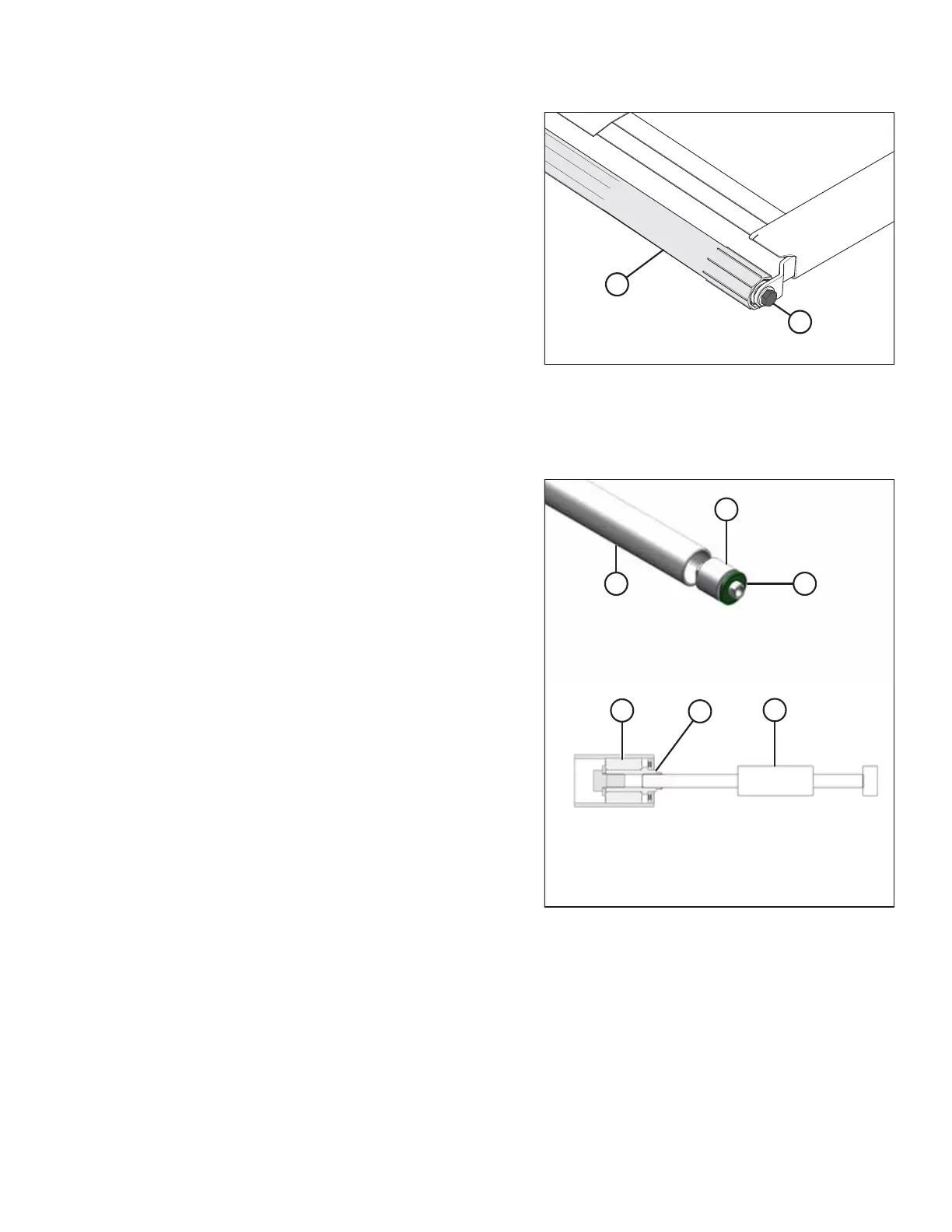

Figure 5.149: Drive Roller
13. Remove bolt (A) securing the opposite end of drive
roller (B) to the support arm.
14. Remove drive roller (B).
Replacing Draper Drive Roller Bearing
1. Remove draper drive roller assembly. For instructions, refer to Removing Draper Drive Roller, page 191.
Figure 5.150: Drive Roller Bearing
2. Remove bearing assembly (A) and seal (B) from roller
tube (C) as follows:
a. Attach slide hammer (D) to threaded shaft (E) in
bearing assembly.
b. Tap out bearing assembly (A) and seal (B).
3. Clean inside of roller tube (C). Check tube for wear or
damage, and replace if necessary.
MAINTENANCE AND SERVICING
