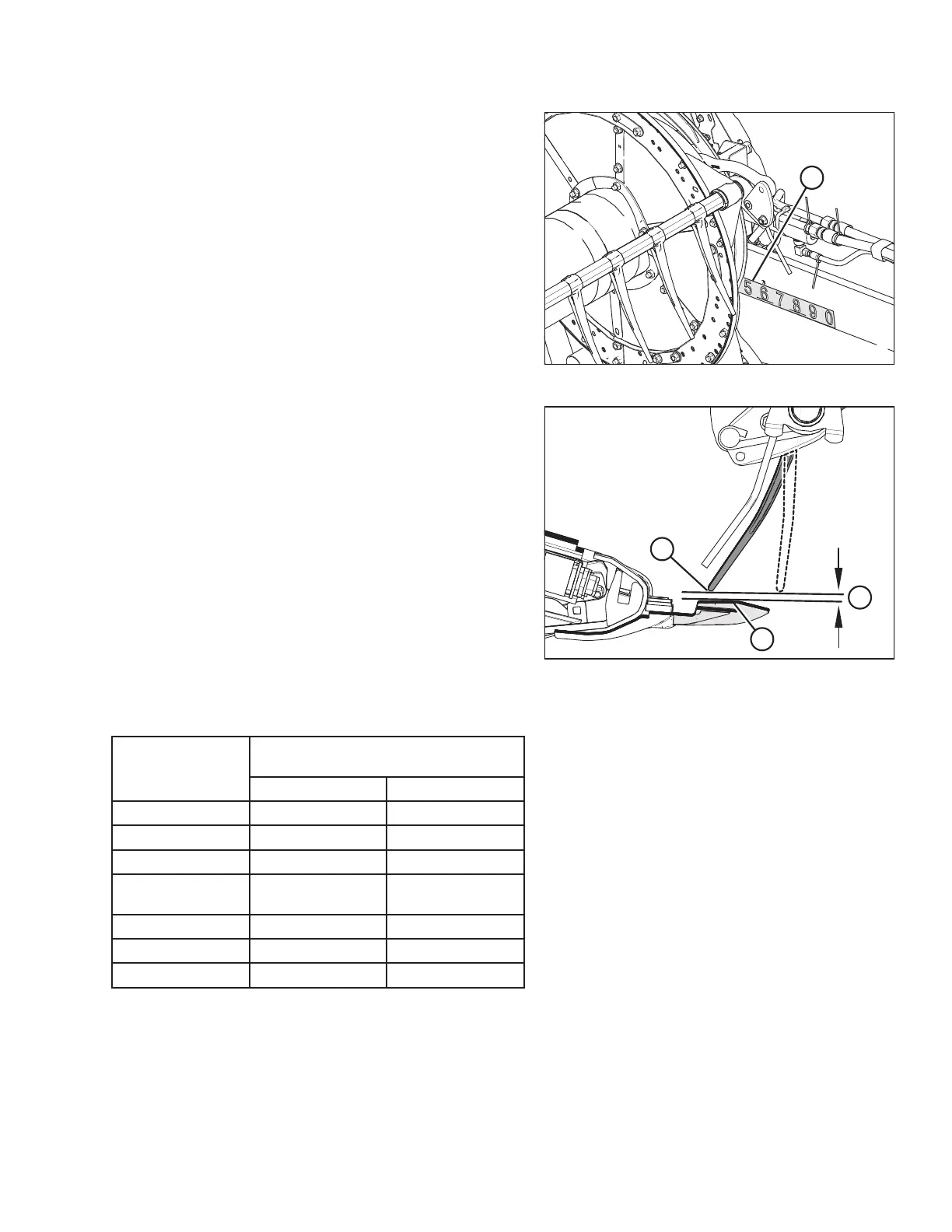

Figure 5.161: Fore-Aft Position
4. Set the fore-aft position to the middle position (5), as
shown on fore-aft position decal (A).
5. Lower the reel fully.
6. Shut down the engine, and remove the key from
the ignition.

;
%
$
Figure 5.162: Reel-to-Cutterbar Clearance
7. Measure clearance (X) between guard (A) and finger (B) at
the specified measurement locations. For the clearance
specifications, refer to Table 5.7, page 199.
For the measurement locations, refer to Figure 5.163, page
200.
NOTE:
When measuring the reel clearance at the center of a
double-reel header, measure the lowest reel.
Table 5.7 Finger to Guard/Cutterbar Clearance
Header Model
Clearance at Reel Ends +/- 3 mm
(1/8 in.)
Single Reel
Double Reel
D115X
20 mm (3/4 in.)
—
D120X
20 mm (3/4 in.)
—
D125X
25 mm (1 in.)
—
D130XL
55 mm
(2 11/64 in.)
25 mm (1 in.)
D135XL
70 mm (2 3/4 in.)
25 mm (1 in.)
D140XL
—
25 mm (1 in.)
D145XL
— 25 mm (1 in.)
