215651 212 Revision B
Tine tube reinforcing kit bushings – option
$
&
'
(
%

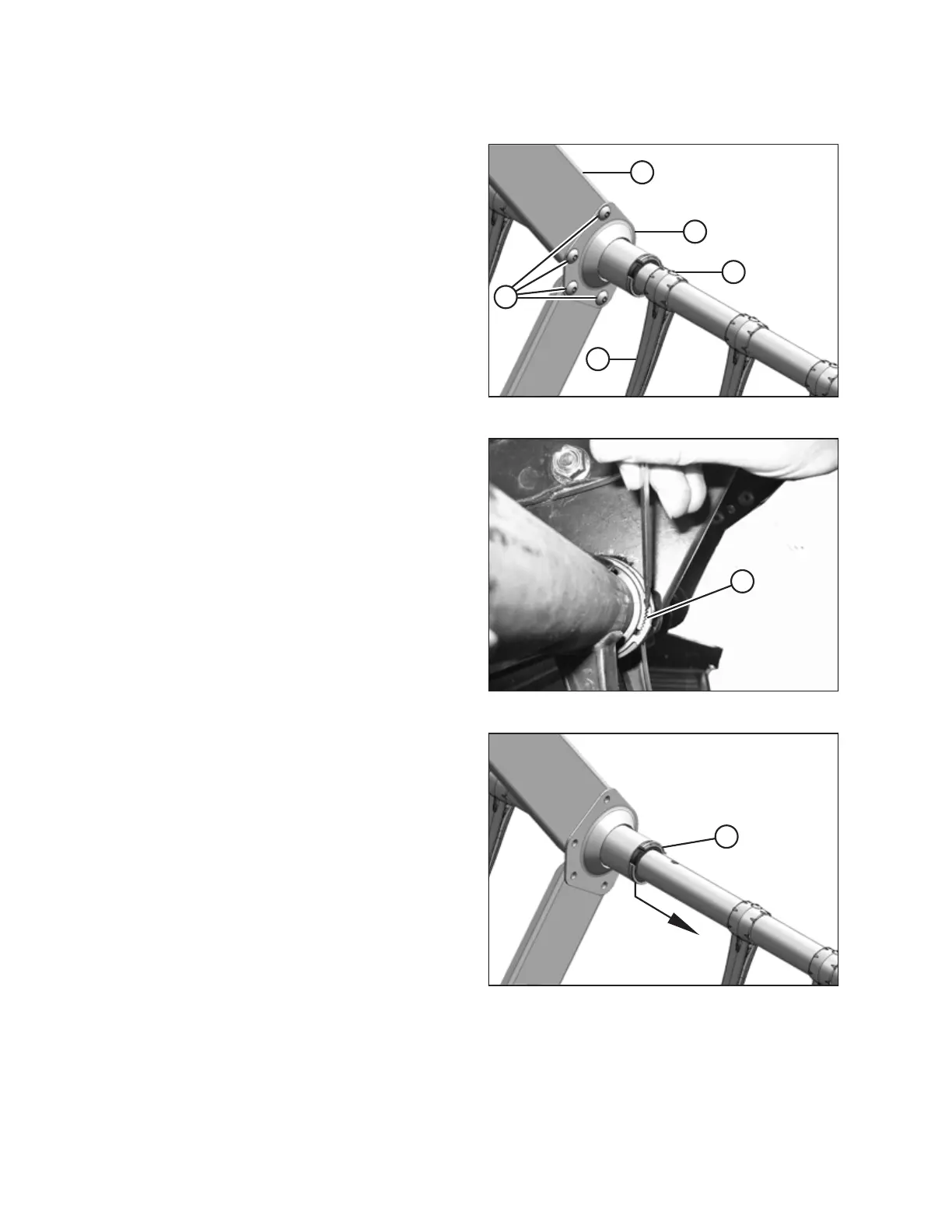

Figure 5.189: Tine Tube Support
18. Locate support (A) that requires a new bushing.
19. Remove four bolts (B) securing channel (C) to support (A).
20. Remove screw (E) and remove finger (D) if it is too close to
the support to allow access to the bushing. For instructions,
refer to Removing Plastic Fingers, page 206 or Removing
Steel Fingers, page 205.
$
Figure 5.190: Bushing Clamp
21. Release bushing clamps (A) using a small screwdriver to
separate the serrations.
$
Figure 5.191: Tine Tube Reinforcing Kit Bushing Clamp
– Option
22. Move clamps (A) off the bushings.
MAINTENANCE AND SERVICING
