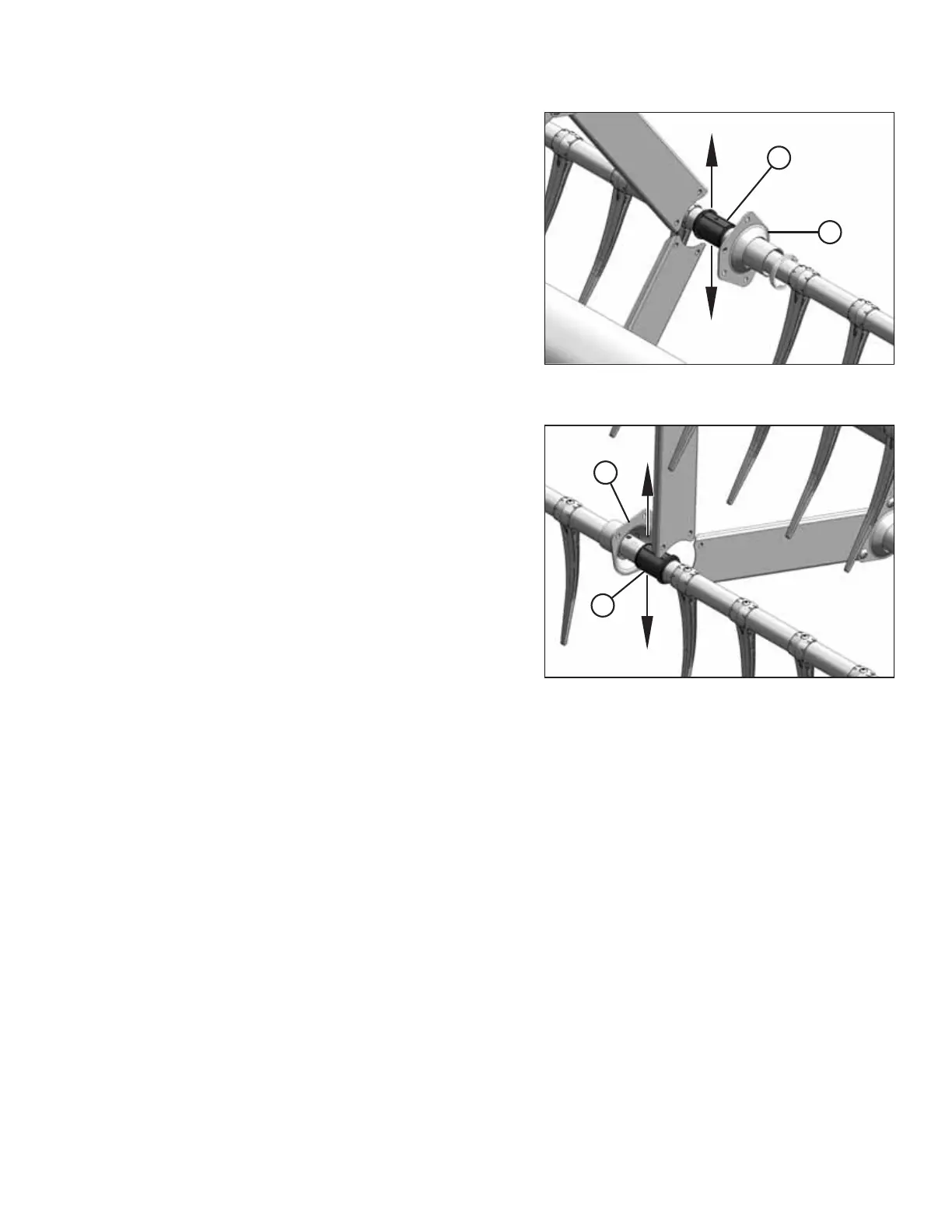

Figure 5.192: Tine Tube Reinforcing Kit Support –
Option
23. On each reel, there are three right-facing supports (A). Slide
the support off bushing halves (B).
Figure 5.193: Tine Tube Reinforcing Kit Opposite
Support – Option
24. On each reel, there are two left-facing supports (A). Rotate
the supports until the flanges clear the channels before
moving them off bushing (B). Move the tube slightly away
from the reel if necessary.
25. Remove bushing halves (B) from the tine tubes.
MAINTENANCE AND SERVICING
