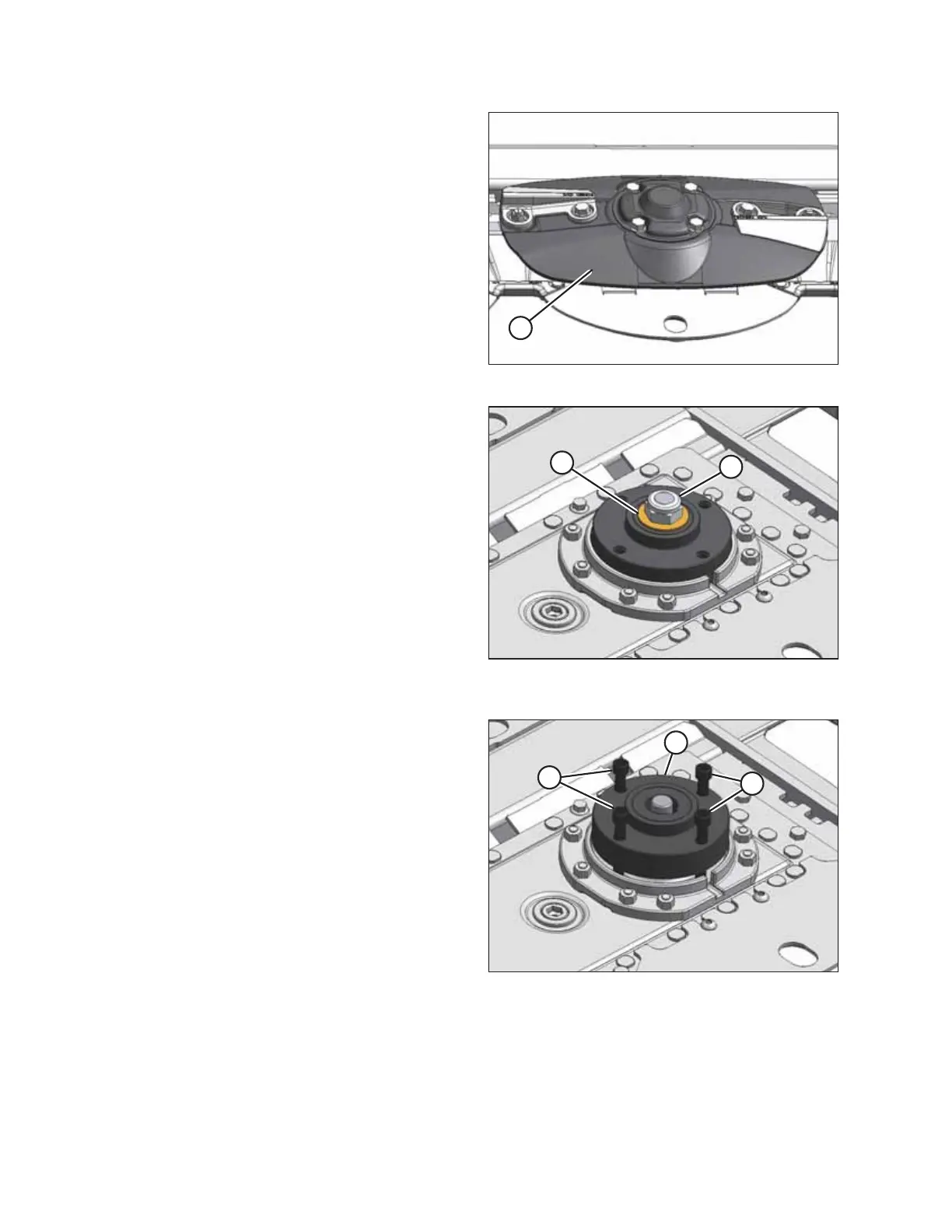

Figure 5.38: Cutter Disc
4. Remove cutter disc (A) from failed spindle. Refer to
5.3.3 Removing a Cutterbar Disc, page 138.
1004665
A
B
Figure 5.39: Cutterbar Spindle Assembly (Short
Spindle Shown)
5. Using a 34 mm socket wrench, remove nut (A) and
washer (B) from spindle.
1018482
A
A
B
Figure 5.40: Cutterbar Spindle Flange and
Securing Bolts
6. Install four M12 mm x 60 mm long bolts (A) into holes in
disc (B).
7. Use bolts (A) as jacking screws to remove flange (B)
from gear. Remove bolts from flange.
