214366 155 Revision A
1004667
A
B

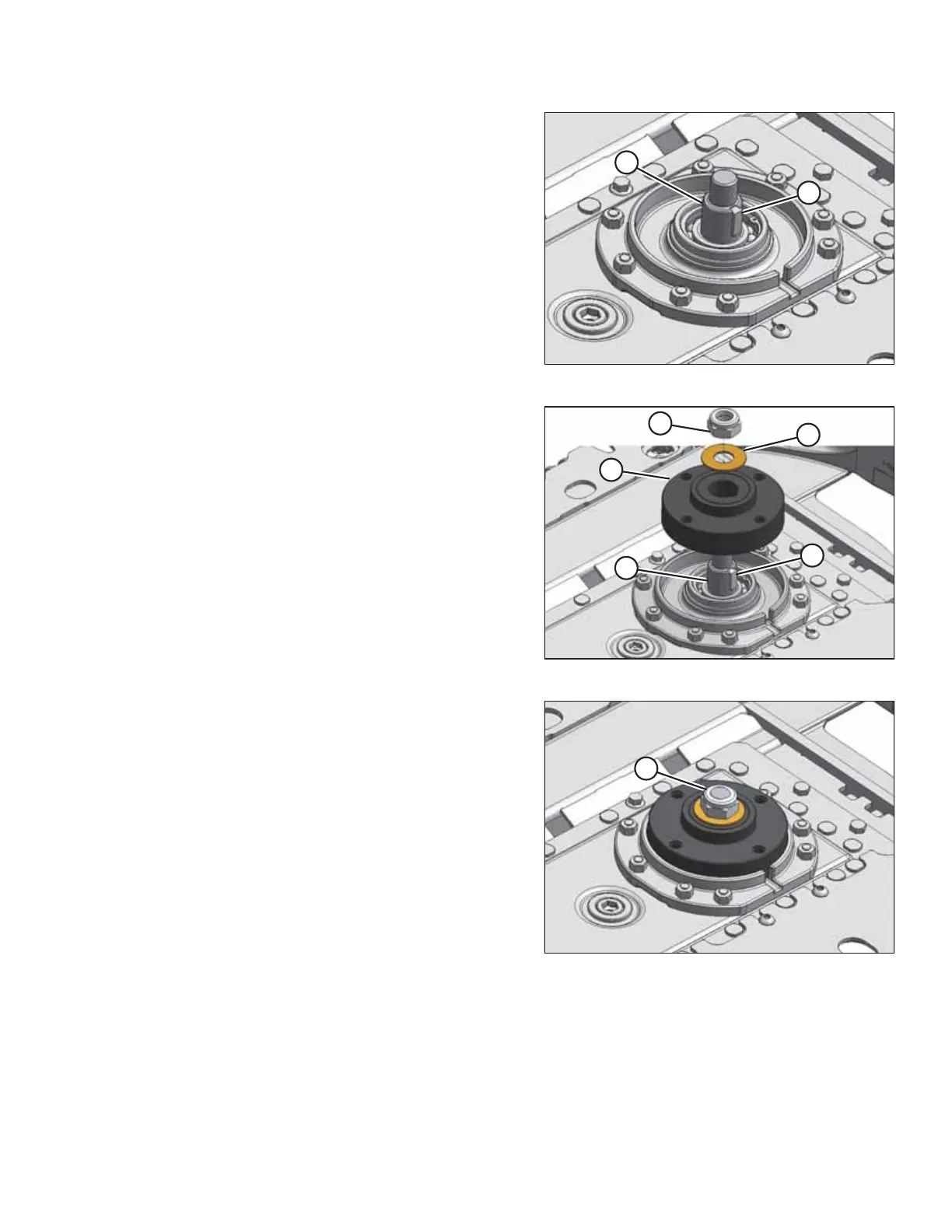

Figure 5.41: Cutterbar Spindle Keyway and Key
8. Pry out failed key (A) from spindle keyway (B).
9. Thoroughly clean metal debris from disassembled
components and cutterbar.
1004668
A
B
C
D
E
Figure 5.42: Cutterbar Spindle Assembly
10. Inspect flange (C) and spindle shaft (E) for damage. If
seriously damaged, replace entire spindle assembly.
Contact your MacDon Dealer.
11. Install new key (D) into gear (E) keyway as shown.
12. Align keyway in disc (C) with key in gear (E) and install
disc (C) onto gear until sufficient threads are exposed to
install washer (B) and nut (A).
1004669
A
Figure 5.43: Cutterbar Spindle Assembly
13. Tighten nut (A) until flange is in final position. Torque
nut to 440 Nm (325 lbf·ft).
14. Reinstall disc. Refer to 5.3.4 Installing a Cutterbar Disc,
page 139.
MAINTENANCE AND SERVICING
