Routing hydraulic hose bundle from header to windrower:
1005185
A

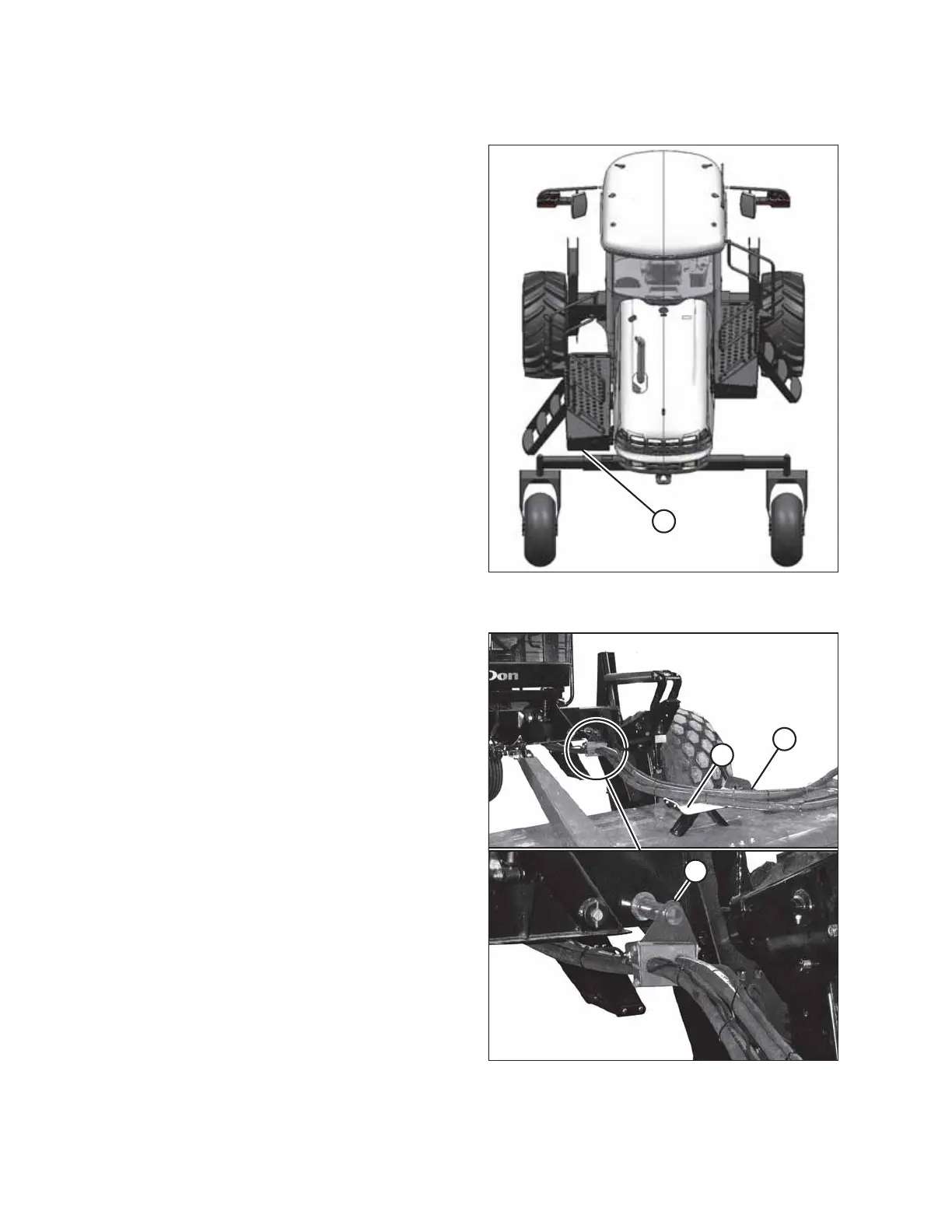

Figure 3.33: Windrower with Left Platform in
Open Position
1. Move windrower left (cab-forward) platform (A) to
OPEN position. For instructions, refer to the windrower
operator’s manual.
1005186
A
B
C
Figure 3.34: Hydraulic Hoses
2. Route hose bundle (A) from the header under the
windrower frame, and insert pin (B) into hole in
windrower frame.
3. Place hoses on support (C) and on the hose support on
the forming shield (not shown).
