214366 47 Revision A
1018909
A

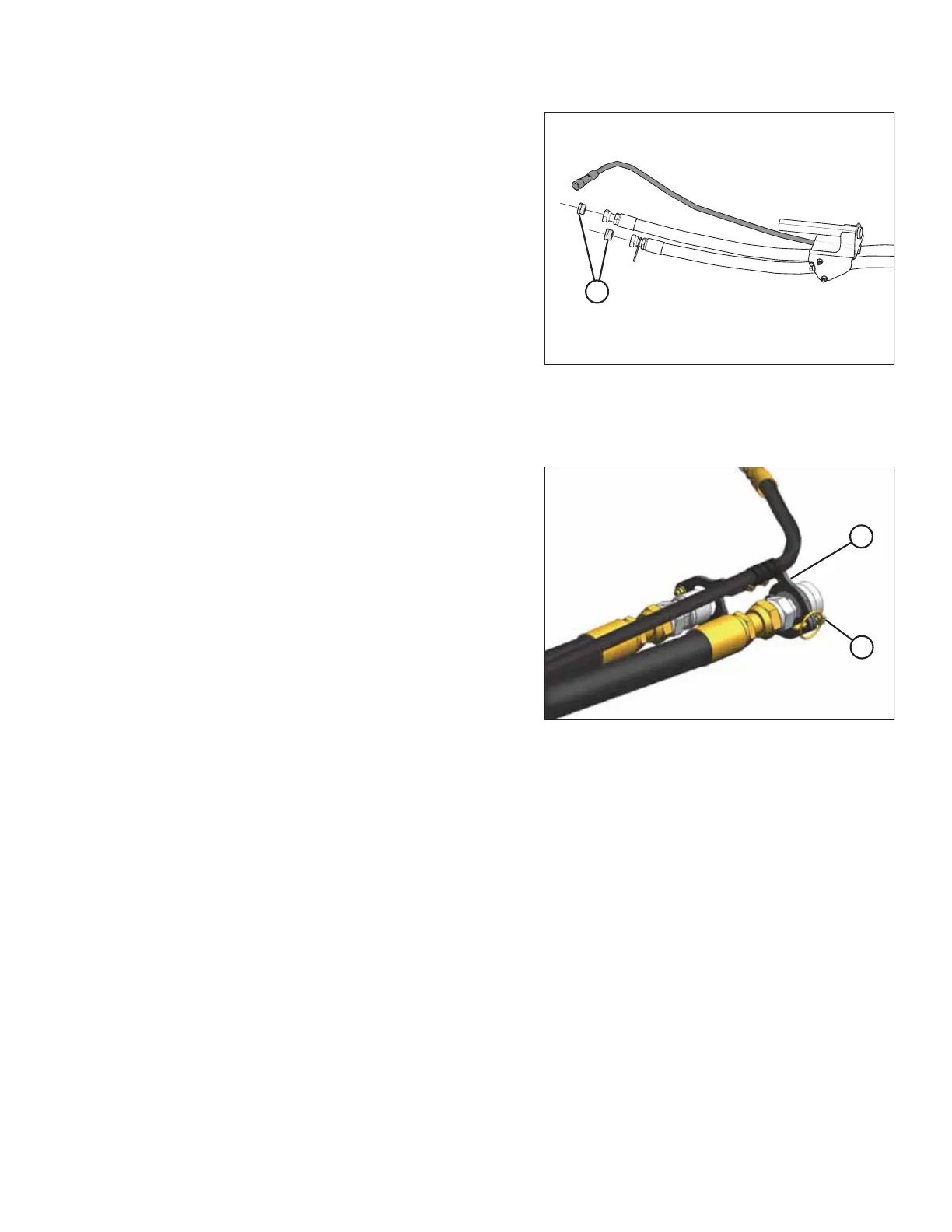

Figure 3.35: Protective Shipping Plugs on R85
Hydraulic Hoses
4. Remove protective plugs (A) from ends of
hydraulic hoses.
Attaching hydraulics using quick coupler connections:
1005187
A
B
Figure 3.36: Hydraulic Couplers with
Coupler Lock
1. Remove coupler lock as follows:
a. Remove lynch pin (A) and open up coupler
lock (B).
b. Remove lock from coupler.
OPERATION
