214366 48 Revision A
1014315
A
A
B
B
E
D
C

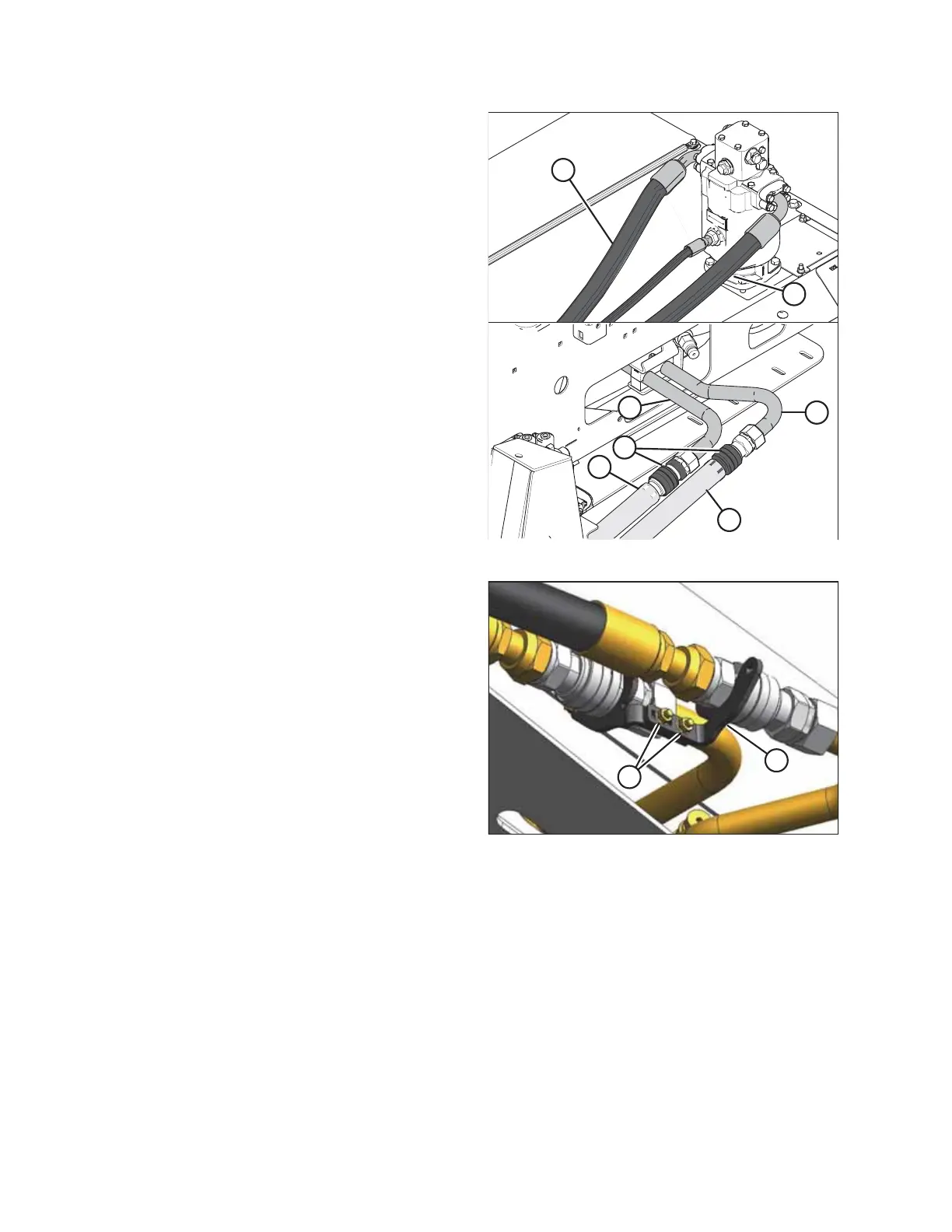

Figure 3.37: Hose Routing and Connections
2. Connect rear pump hose (A) to outboard line (D) on
windrower using coupler (C).
3. Connect front pump hose (B) to inboard line (E) on
windrower using coupler (C).
1005189
A
B
Figure 3.38: Hydraulic Couplers with
Coupler Lock
4. Position the lock onto the couplers so that retainer (A)
rests under the fitting next to the sleeve on each
coupler.
NOTE:
The retainer can be adjusted by loosening bolts (B).
Tighten bolts after adjusting.
OPERATION
