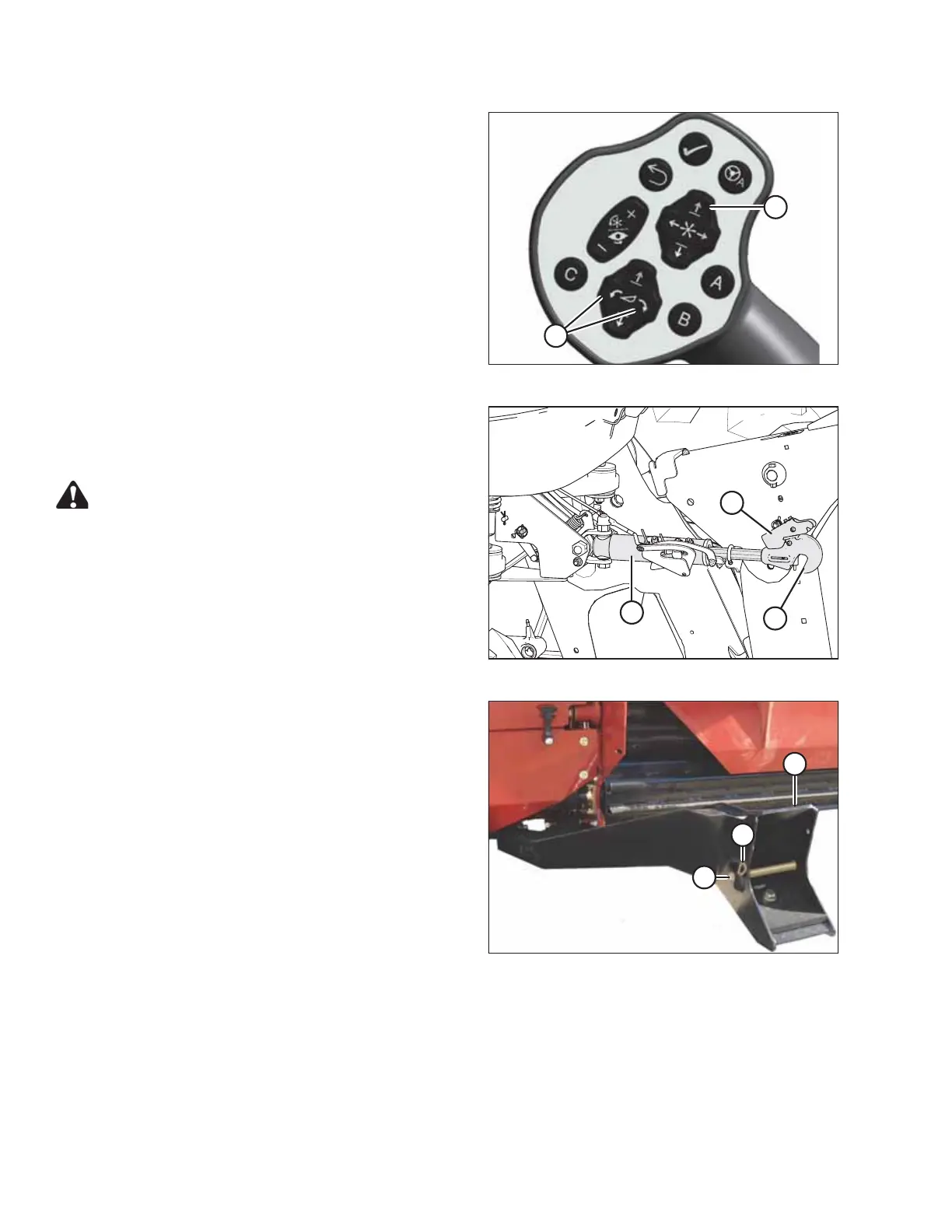

Figure 3.84: GSL
11. For windrowers with self-aligning center-link: Use
HEADER TILT cylinder switches (A) on GSL to release
load on center-link cylinder.
12. Operate the link lift cylinder with the REEL UP
switch (B) to disengage the center-link from the header.
1019451
A
B
C
Figure 3.85: Hydraulic Center-Link
13. For windrowers without self-aligning center-link:
Shut off the engine and remove the key.
14. Lift hook release (C) and lift hook (B) off header pin.
CAUTION
Check to be sure all bystanders have cleared the area.
15. Start the engine.
1000812
A
B
C
Figure 3.86: Header Support
16. Back the windrower slowly away from header.
17. Reinstall clevis pin (A) through support (C) and secure
with hairpin (B). Repeat for opposite side.
