INTRODUCTION9

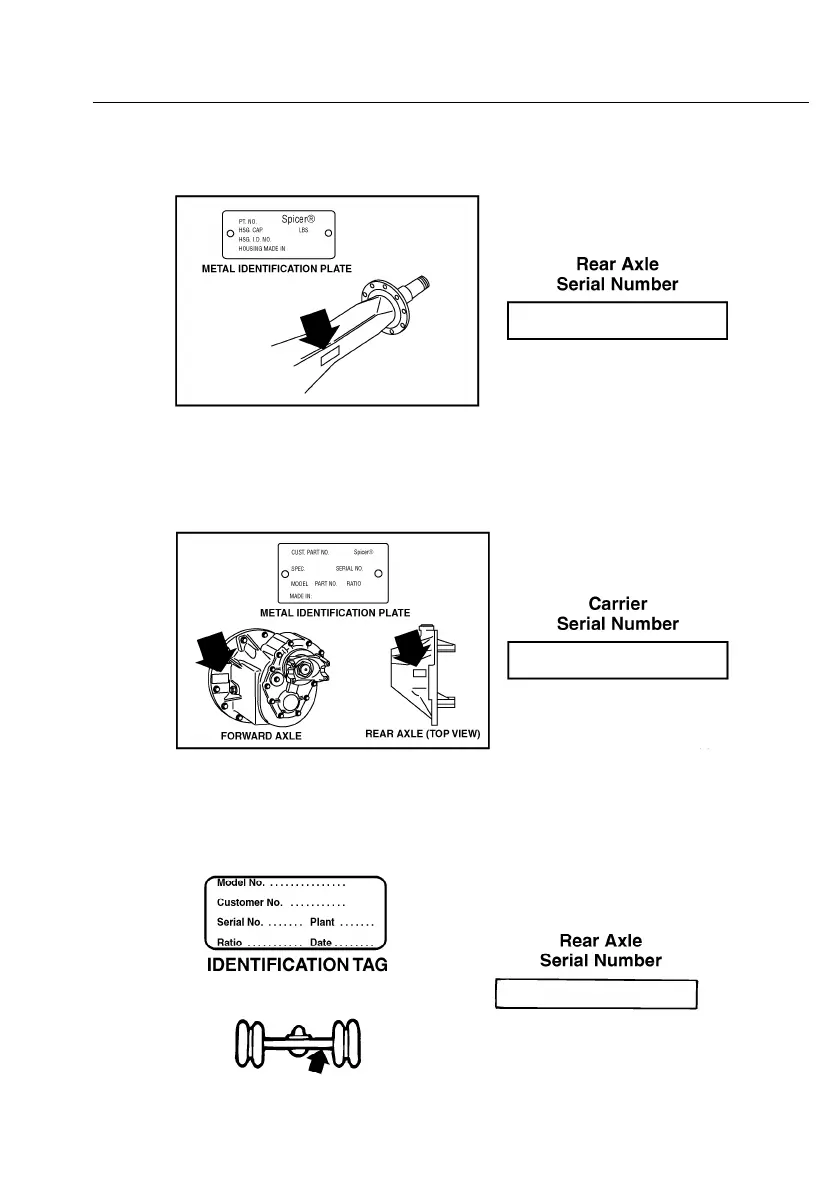

TheEaton®Spicer®rearaxleserialnumberislocatedontherearoftheaxlehousing

towardthecarrier.

C0032627

TheEaton®Spicer®carrierassemblyserialnumberislocatedontheleftsideofthe

forwardcarrier,andthetopoftherearcarrier.

C0032628

TheMERITORrearaxleidenticationtagislocatedontheleftorrightrearoftherear

axlehousing,nexttothecarrier.

C0032629
