MAINTENANCEANDLUBRICATION211

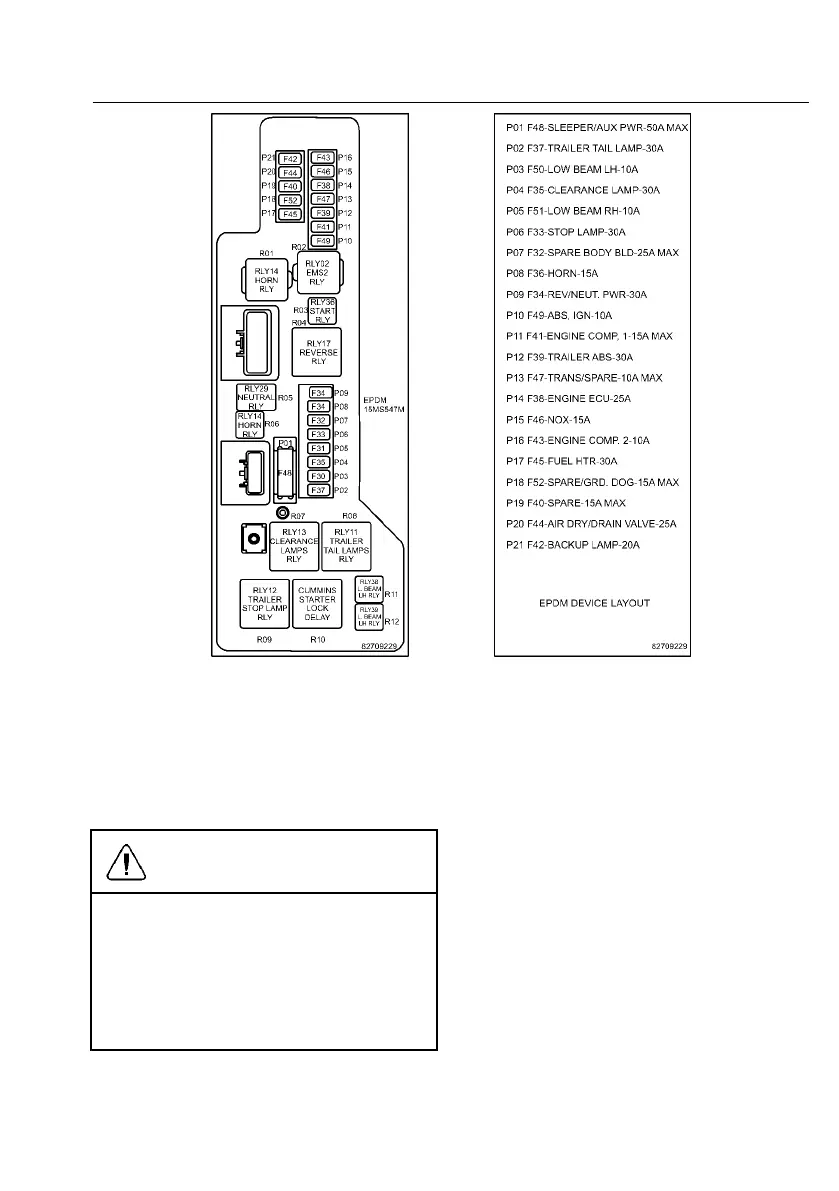

W3061560

Note:Forcircuitbreakerdesignations,refertotheCircuitProtectioncharts.

Fusesarestandardequipmentforallcircuitsexcepttheheadlampsandwindshieldwipers.

Circuitbreakersareavailableasoptionalequipment.

CAUTION

Forproperinstallationofelectrical

accessories,allwiringshouldmeetSAE

requirementsandberoutedthrough

thecircuitprotectionpanelwithproper

amperagefusesorTypeIIcircuitbreakers.

(HeadlightsandwiperswillbeonTypeI,

cycling-typecircuitbreakers.)
