MAINTENANCEANDLUBRICATION219

BodyInstaller’sInterfaceConnector

Anoptionalbodybuilderinterfaceharnessisavailabletoprovideaneasy,reliablemethod

ofconnectingintothevehicleelectricalsystemwithouthavingtocutandspliceintothe

chassiswireharnesses.ThisharnessprovidesconnectionstotheV-MAC®IVsystemwhen

signalsforPTOinputs,Set/Decelinputs,enginespeed,vehiclespeed,etc.,arerequired.The

harnessalsoprovidessparepowerandgroundconnectionsbothinsideandoutsidethecab.

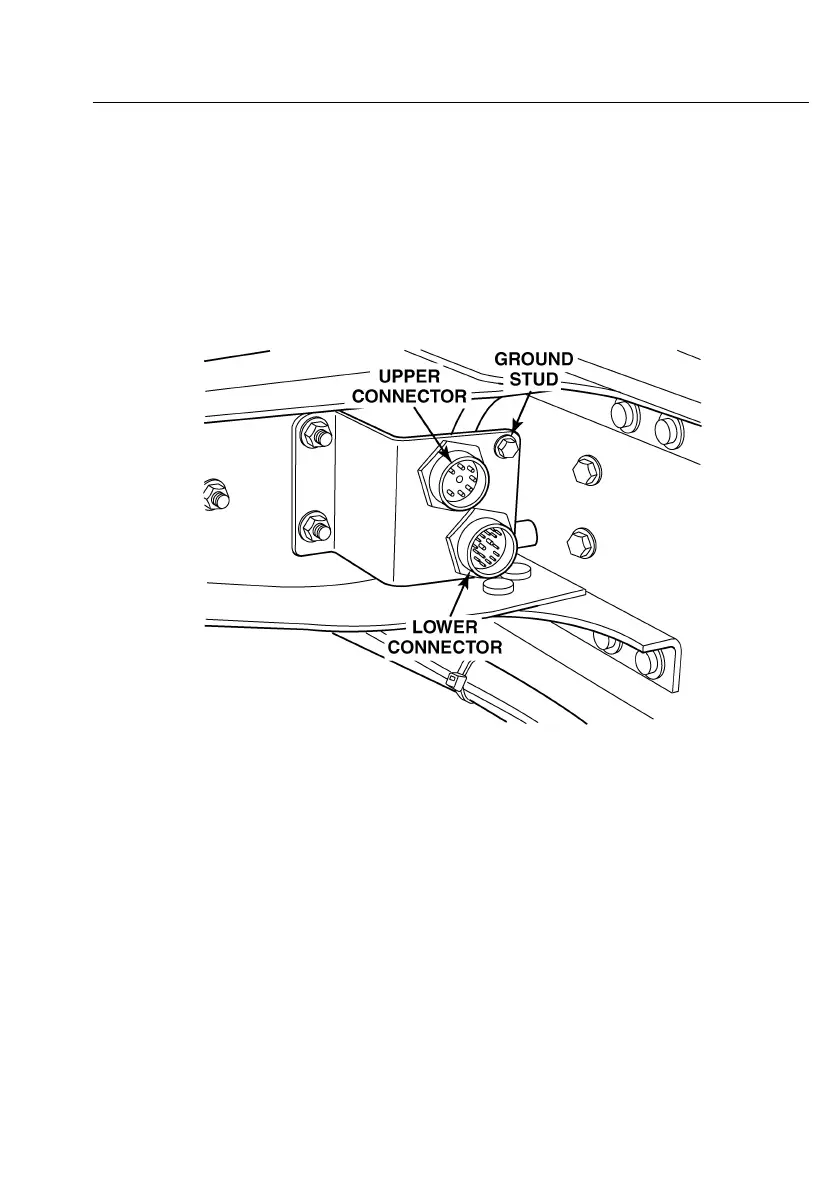

TheMACK®chassisofferstwooptionalbodybuilderinterfaceconnectorslocatedinside

theframerailontheright-handsideofthechassisbehindthecab.

C0032910

InsidetheFrameRail
