220MAINTENANCEANDLUBRICATION

C0032911

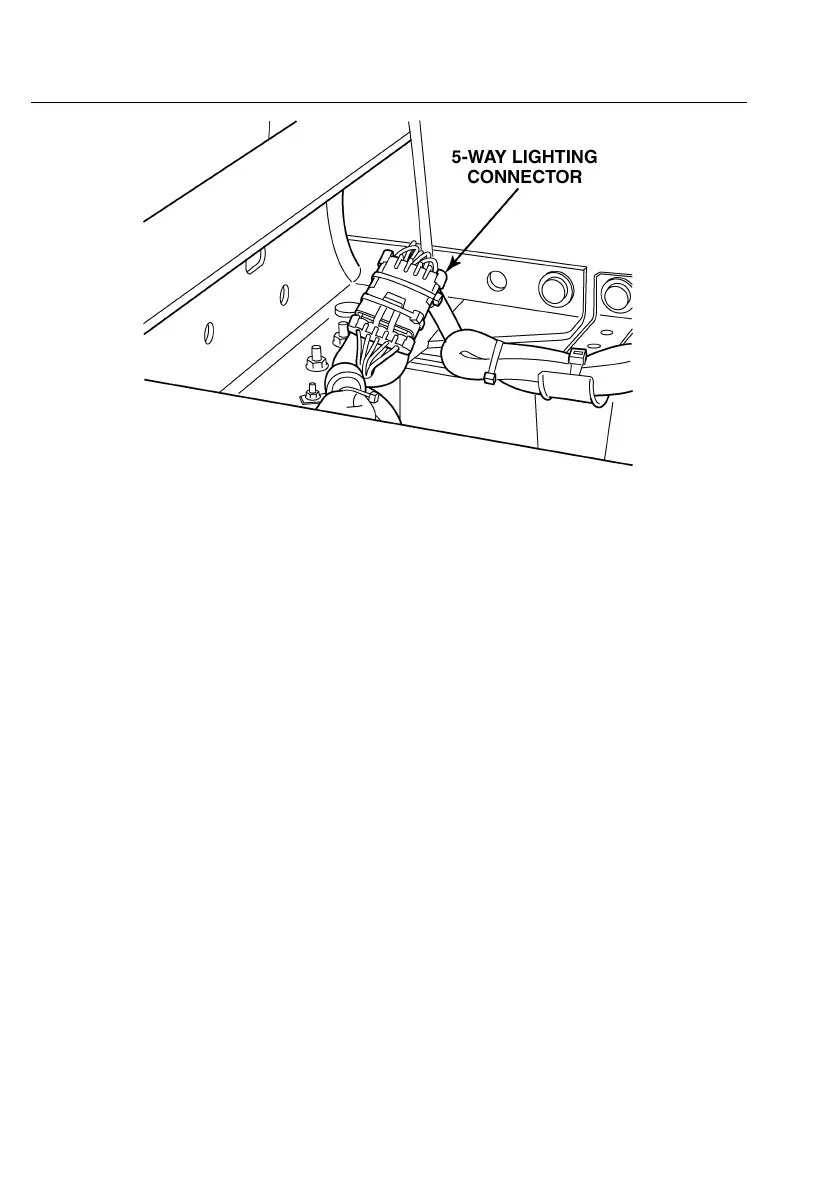

InsidetheBackoftheFrameRail

Theseconnectorsprovideconnectionstothefollowingcircuits:

UpperConnector:

ElectricalConnection

Fusedamps

12Vbatteryfeed

30A

12Vbatteryfeed

30A

12VIgnitionfeed

30A

12VIgnitionfeed

30A

ReversePowerfeed/NeutralPowerfeed

15A

StopLampSignal

30A

TailLampSignal

30A

ClearanceLampSignal

30A
