MAN B&W 5.03

Page  of 3

MAN Diesel

MAN B&W 60MCC/MEC, S65MEC, 70MCC/MEC, S/K80MCC/MEC,

90MC/MCC/ME/MEC, 98MC/MCC/ME/MEC

198 48 488.1

Crane beam for turbochargers

#RANEæBEAMæFORæTRANSPORTATIONæOFæCOMPONENTS

#RANEæBEAMæFORæDISMANTLINGæOFæCOMPONENTS

3PARES

#RANEæBEAMæFORæTRANSPORTATIONæOFæCOMPONENTS

#RANEæBEAMæFORæDISMANTLINGæOFæCOMPONENTS

178 52 746.0

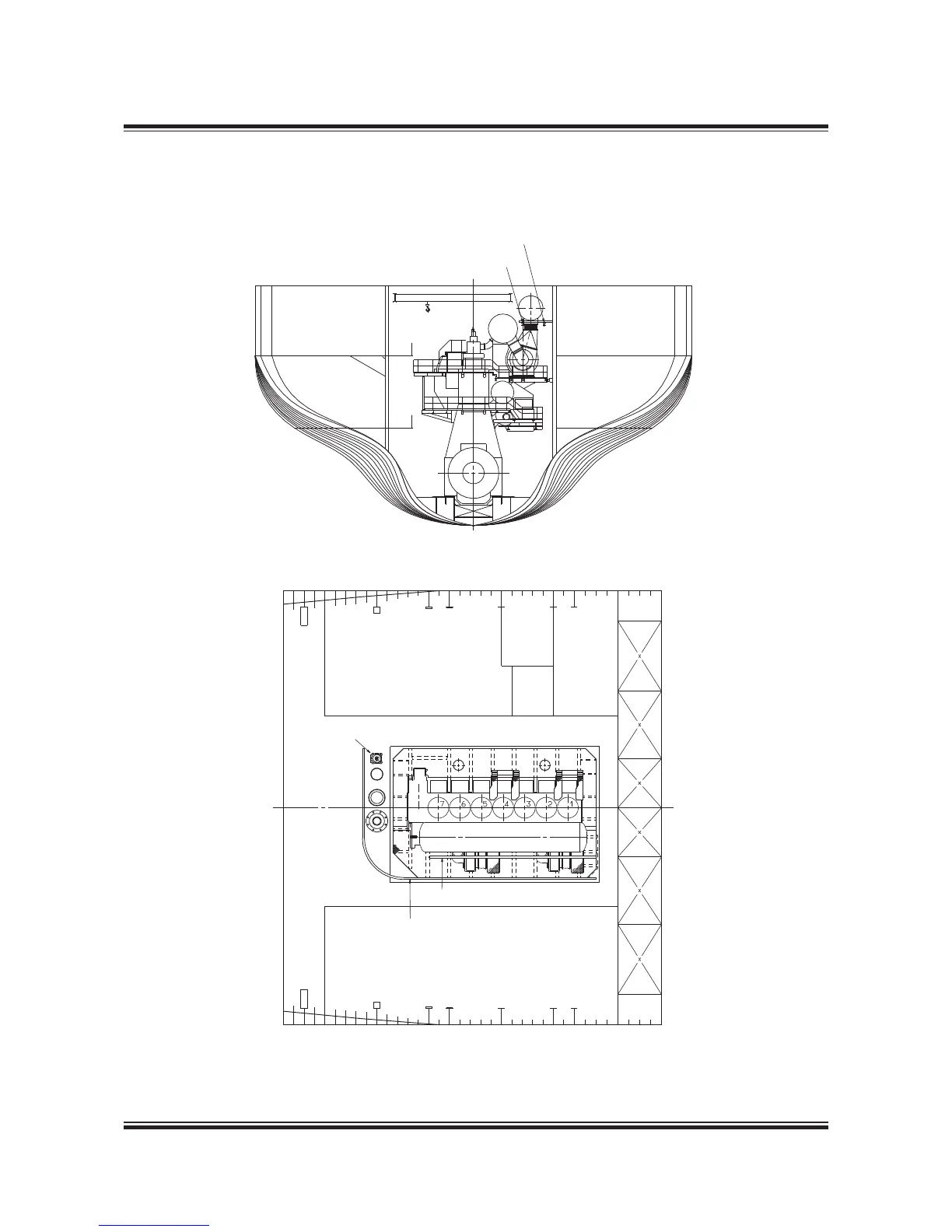

Fig. 5.03.02: Crane beam for turbocharger
