MAN B&W 5.16
Page of 4
MAN Diesel
MAN B&W ME/ME-C/ME-GI/MEB engines 198 46 977.4
Components for Engine Control System

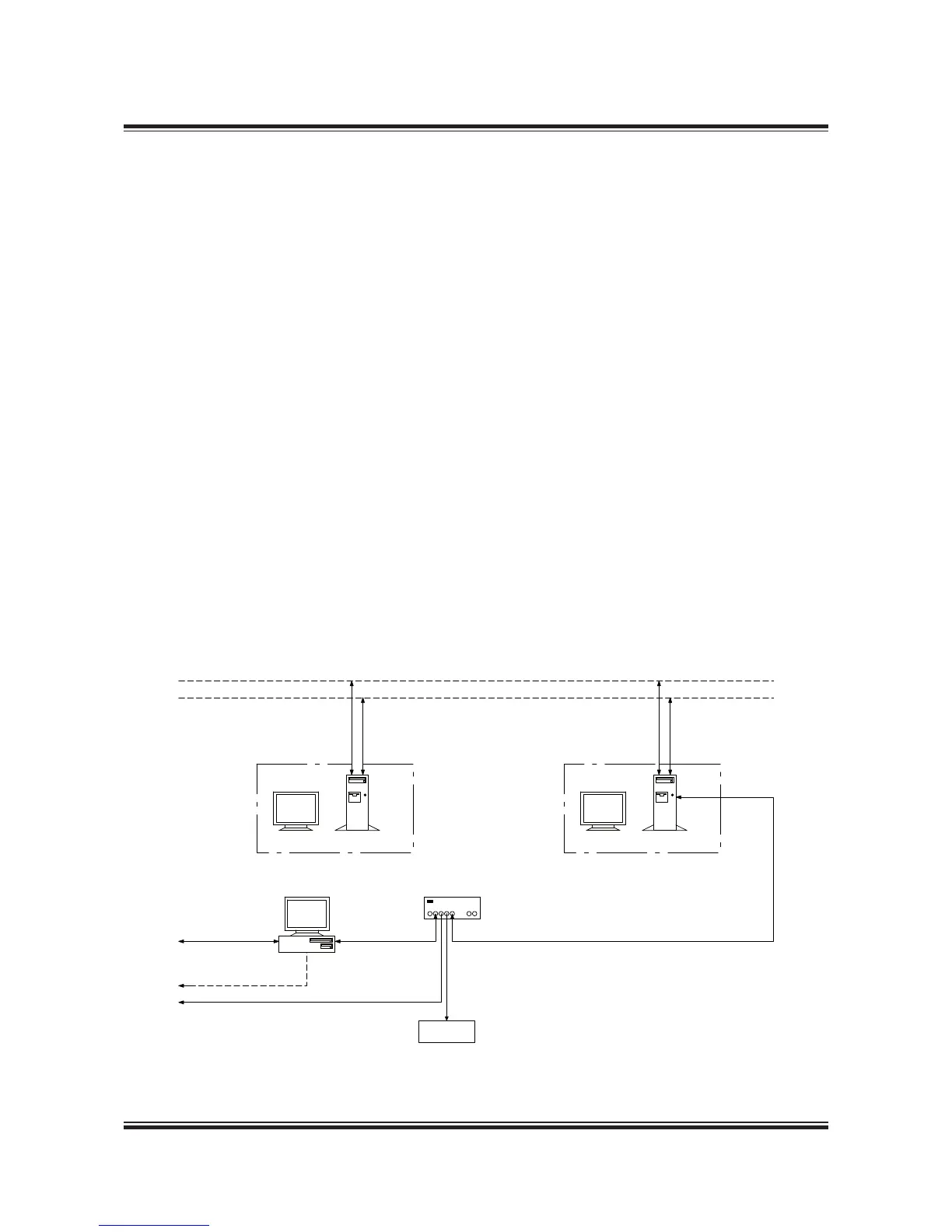

Installation of ECS in the Engine Control Room
The following items are to be installed in the ECR
(Engine Control Room):
• 2 pcs EICU (Engine Interface Control Unit)
( pcs only for ME-B engines)
• pcs MOP (Main Operating Panel)
Touch display, 5”
PC unit
• pcs Track ball for MOP
• pcs PMI system
Display, 9”
PC unit
• pcs Backup MOP
Display, 5”
PC unit
Keyboard
• pcs Printer
• pcs Ethernet Hub
The EICU functions as an interface unit to ECR
related systems such as AMS (Alarm and Monitor-
ing System), RCS (Remote Control System) and
Safety System. On ME-B engines the EICU also
controls the HPS.
The MOP is the operator’s interface to the ECS.
From there the operator can control and see sta-
tus of the engine and the ECS. The MOP is a PC
with a at touch screen.
The Backup MOP consists of a PC unit with
keyboard and display and serves as a backup in
case the MOP should break down.
The PMI ofine system is equipped with a stand-
ard PC. The PMI system serves as a pressure
analyse system. See Section 8.02.
Optional items to be mounted in the ECR include
the CoCoSEDS which can be purchased sepa-
rately and applied on the PC for the PMI ofine
system. See Section 8.03.
