MAN B&W 8.07
Page of
MAN Diesel
MAN B&W S80MEC, K80MEC 198 42 603.0

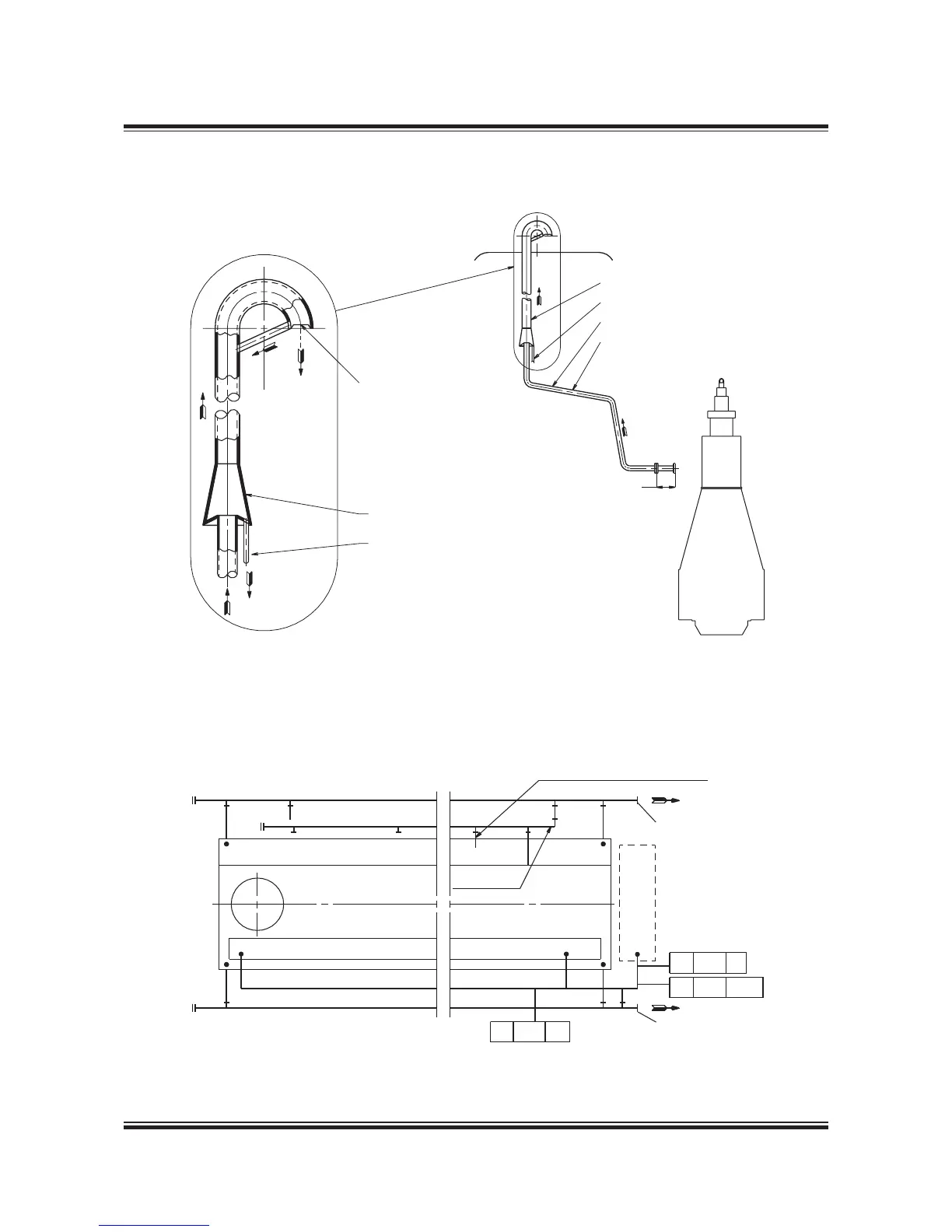

Crankcase Venting and Bedplate Drain Pipes
Hole diam.: 75 mm
To be equipped with flame screen
if required by class rules
Drain cowl
Inside diameter of drain pipe: 0 mm
This pipe to be
delivered with the engine
Deck
Inside diam. of pipe: 00 mm
To drain tank
To be laid with inclination
Venting from crankcase inside
diam. of pipe: 65 mm
AR
