Man B&W S80ME-C7

MAN B&W 8.05
Page 3 of 3
MAN Diesel
MAN B&W S90MC-C7/8, S90MEC7/8,
K90MEC6/9, S80MEC7/8/9
198 42 377.3

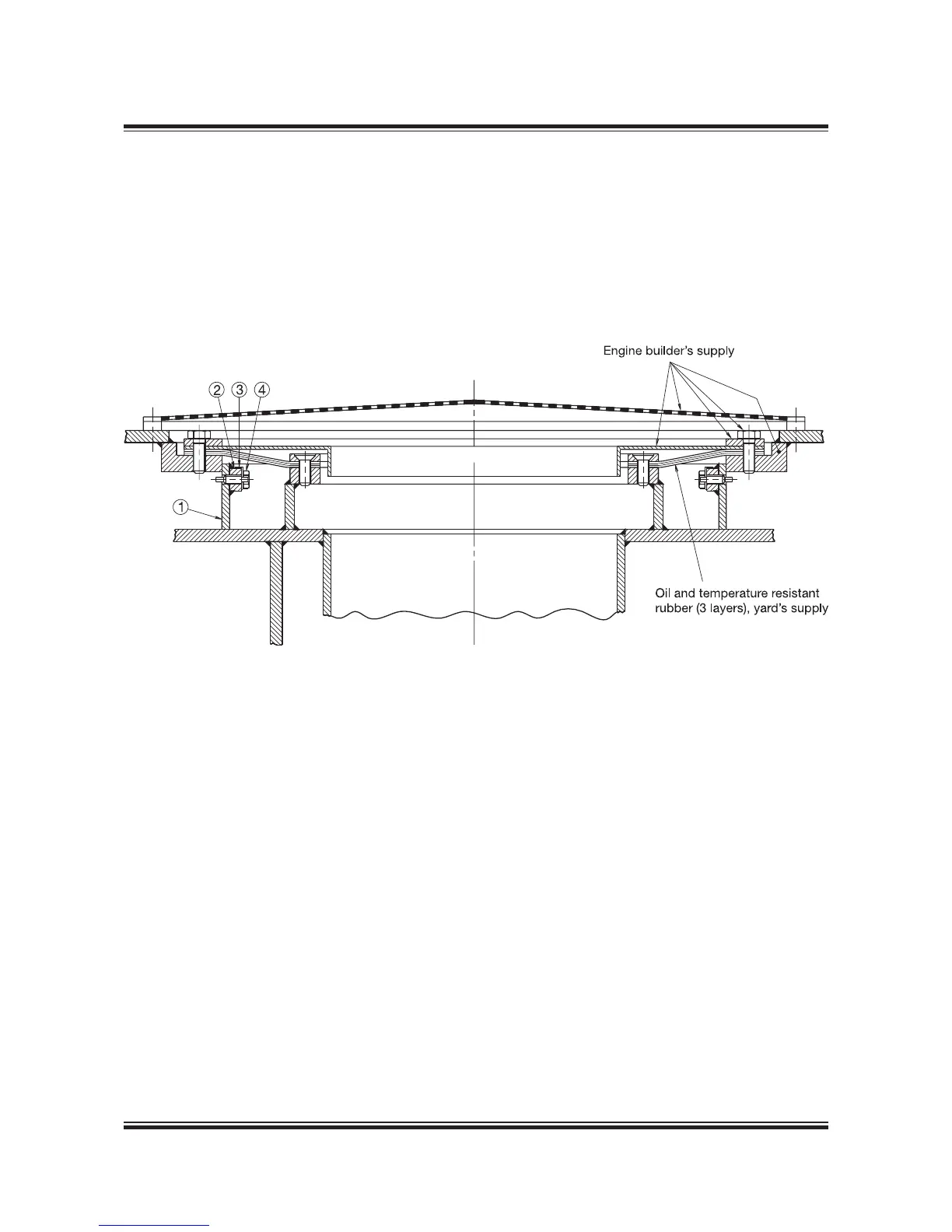

Fig.8.05.01:Lubricatingoiloutlet
17807416.0
Lubricating oil outlet
A protecting ring position 4 is to be installed if
required, by class rules, and is placed loose on
the tanktop and guided by the hole in the ange.
In the vertical direction it is secured by means of
screw position 4, in order to prevent wear of the
rubber plate.
