MAN B&W 14.06
Page  of 
MAN Diesel
MAN B&W MAN B&W S80MC-C7/8, S80MEC7/8 198 40 31-5.2
The scavenge air box is continuously drained
through ‘AV’ to a small pressurised drain tank,
from where the sludge is led to the sludge tank.
Steam can be applied through ‘BV’, if required, to
facilitate the draining. See Fig. 4.06.0.
The continuous drain from the scavenge air box
must not be directly connected to the sludge tank
owing to the scavenge air pressure. The pres-
surised drain tank must be designed to withstand
full scavenge air pressure and, if steam is applied,
to withstand the steam pressure available.

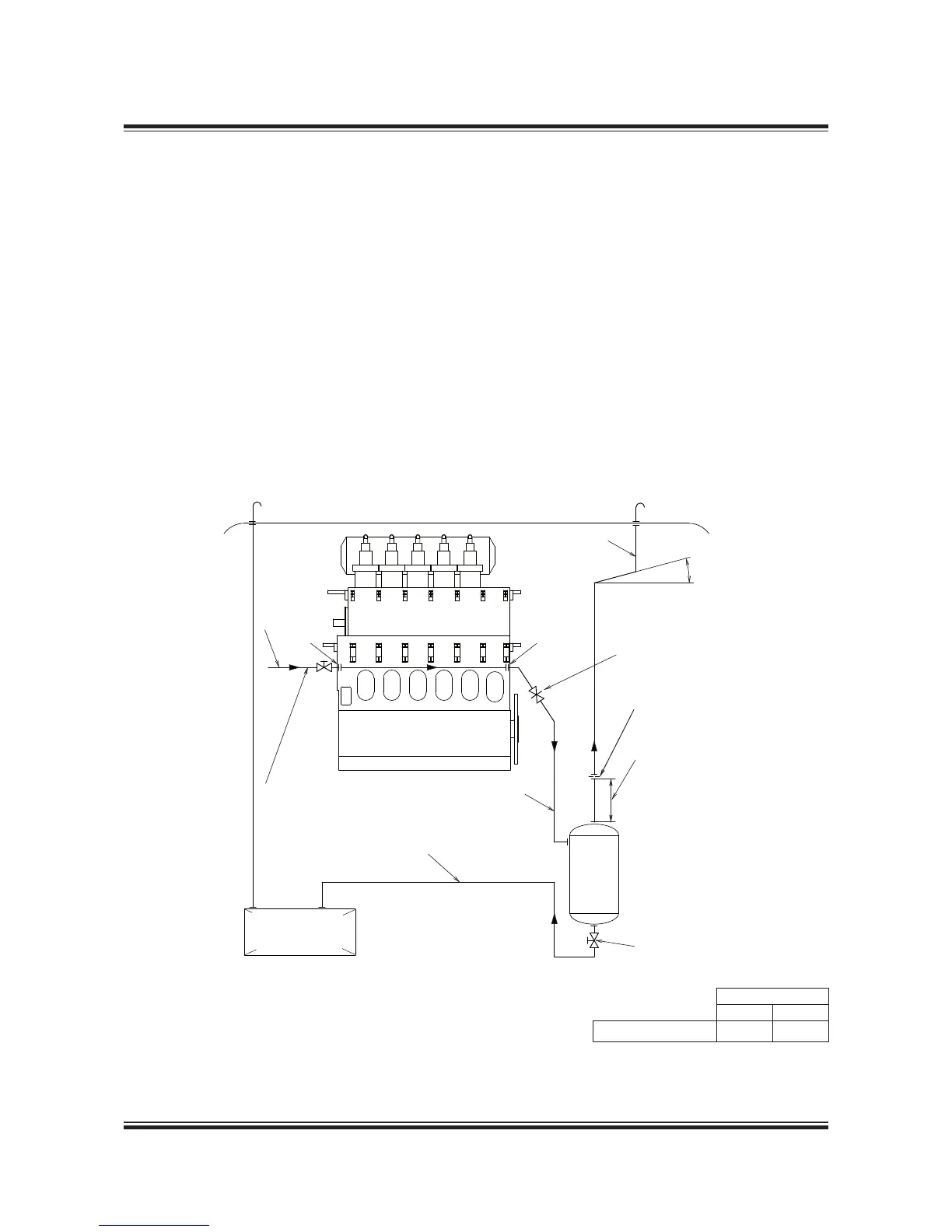

Fig. 14.06.01: Scavenge air box drain system
Drain from water mist catcher
The drain line for the air cooler system is, during
running, used as a permanent drain from the air
cooler water mist catcher. The water is led through
an orice to prevent major losses of scavenge air.
The system is equipped with a drain box with a
level switch, indicating any excessive water level.
The system delivered with and tted on the engine
is shown in Fig. 4.03.02 Scavenge air space,
drain pipes.
079 61 03-0.2.0
$ECK2OOF
$RAIN
TANK
$.ææMM
$.ææMM
3LUDGEæTANK
FORæFUELæOIL
CENTRIFUGES
/RIFICEææMM
$.ææMM
"6 !6
3TEAMæINLETæPRESSUREæçæBAR
)FæSTEAMæISæNOTæAVAILABLEææBA
COMPRESSEDæAIRæCANæBEæUSED
$.ææMM
.ORMALLYæCLOSED
4ANKæTOæBEæEMPTIED
DURINGæSERVICEæWITHæ
VALVEæOPEN
.ORMALLYæOPEN
4OæBEæCLOSEDæINæCASEæOFæFIRE
INæTHEæSCAVENGEæAIRæBOX
-INæDISTANCE
æMM
-INæª
The letters refer to list of ‘Counteranges’
Scavenge Air Box Drain System
No. of cylinders
6 7-8
Drain tank capacity 0.4 m
3
0.7 m
3
