MAN B&W 5.15
Page  of 
MAN Diesel
198 44 844.0MAN B&W S80MEC7
a = 72
b = 4,984
c = 6,408
d = 7,832
e = 9,256
f = 0,680
Turbocharger R
NA70 5,875
TPL80 5,625
TPL85 5,875
MET7 5,525
Horizontal distance
between top bracing
x point and Cyl.

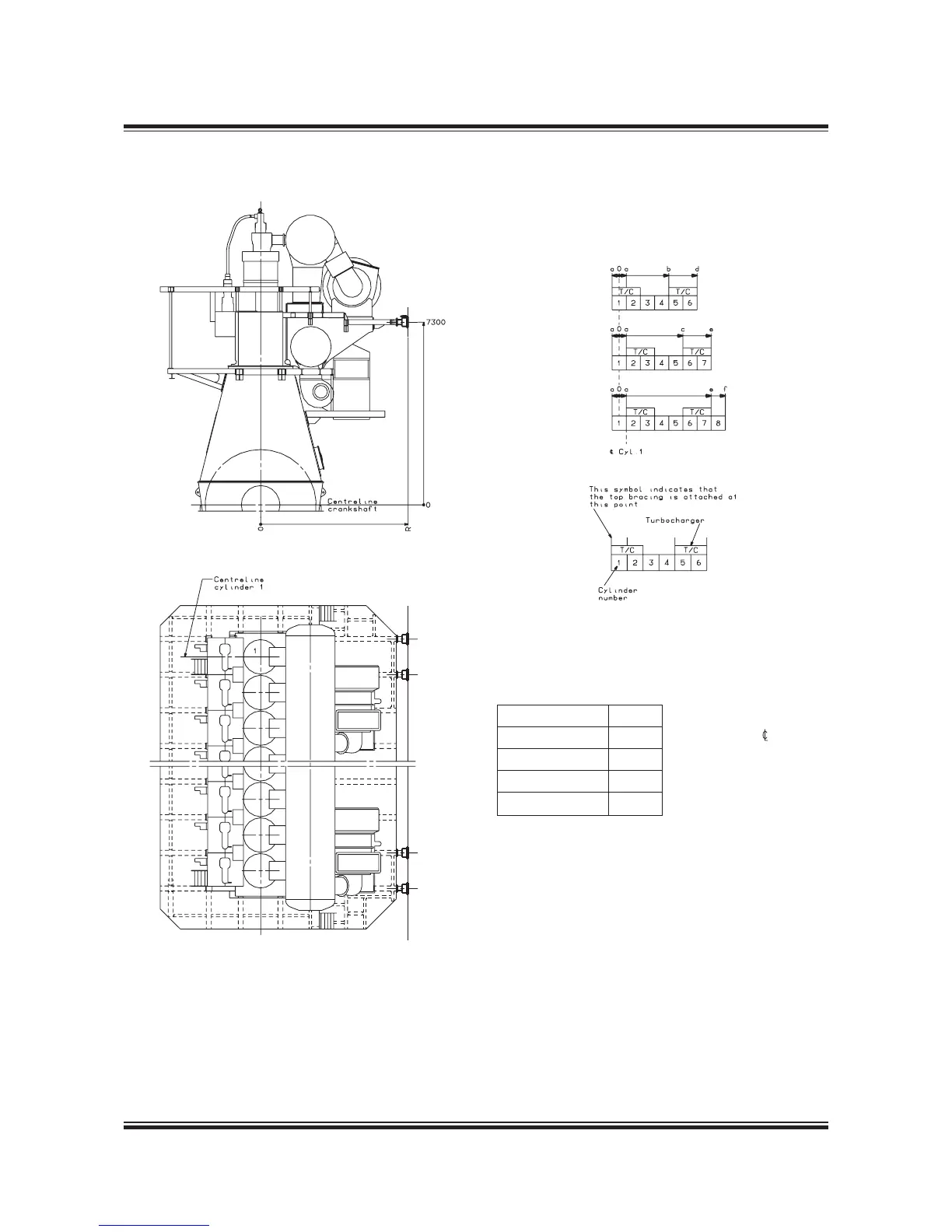

Fig. 5.15.01: Hydraulic top bracing data
