S/K80ME-C 198 42 14-9.0
MAN B&W Diesel A/S 19.10
Page 3 of 8
Pos Sec. Description
Mass Dimensions (mm)
(kg)
ABCDE
1 901 Chain for lift of cylinder cover 10 1338 150
2 902 Crossbar for cylinder liner 103 1350 250 220 55 90
3 915 Collar ring for piston 155 690 1100 473 1410
4 902 Guide ring for piston 75 100 960
5 902 Lifting tool for piston 338 440 215 865 40 90
6 902 Support iron for piston 182 1151 940 680

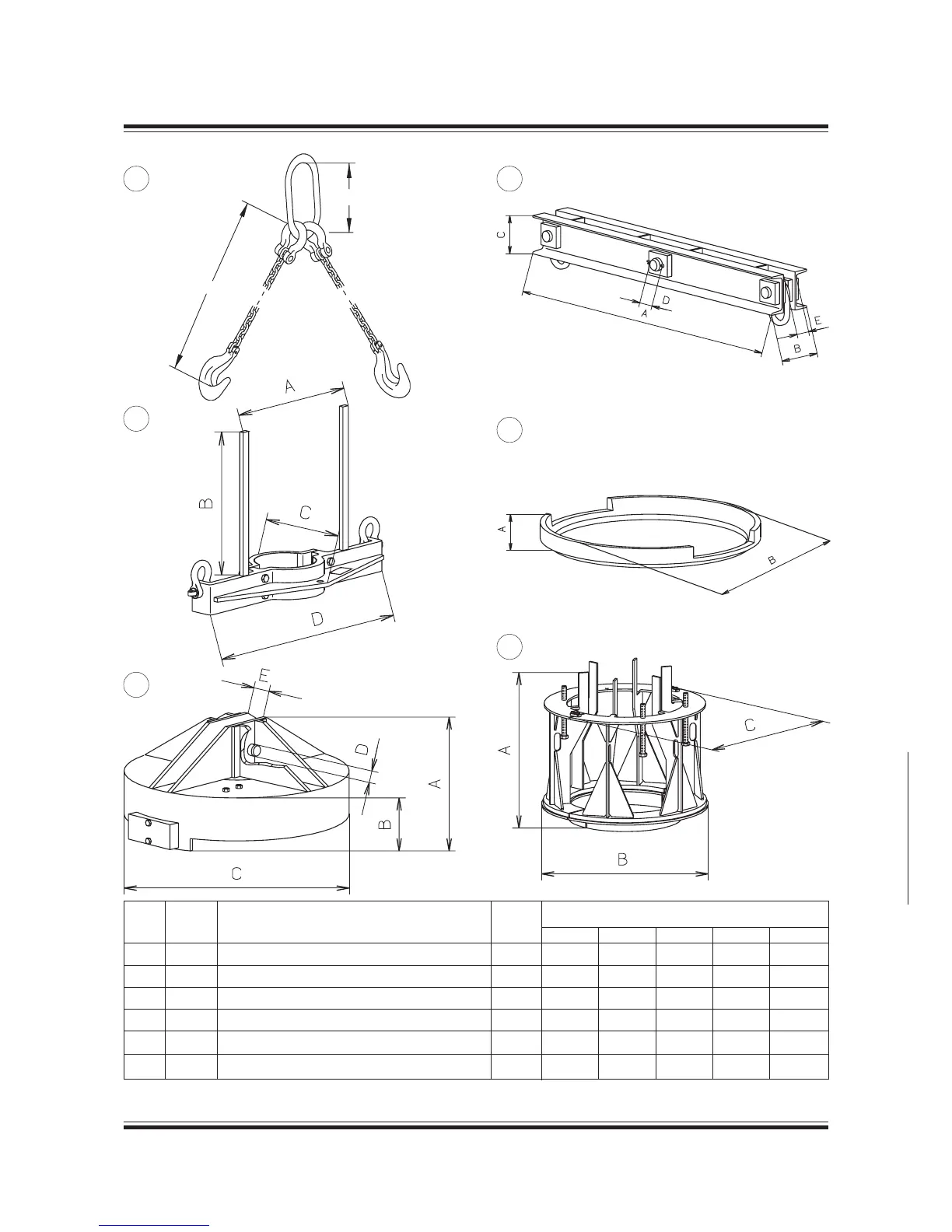

Fig. 19.10.01: Dimensions and masses of tools
A
B
178 26 15-8.0
21
178 51 17-8.0
178 51 19 1.0 178 51 20-1.0
178 51 21-3.0 178 51 22-5.0
4
3
6
5
