M Specied MCR of engine
S Continuous service rating of engine
O Matching point of engine
A Reference point of load diagram
MP Specied MCR for propulsion
SP Continuous service rating of propulsion
Point A of load diagram is found:
Line Propeller curve through matching point (O)
is equal to line 2
Line 7 Constant power line through specied MCR (M)
Point A Intersection between line and 7

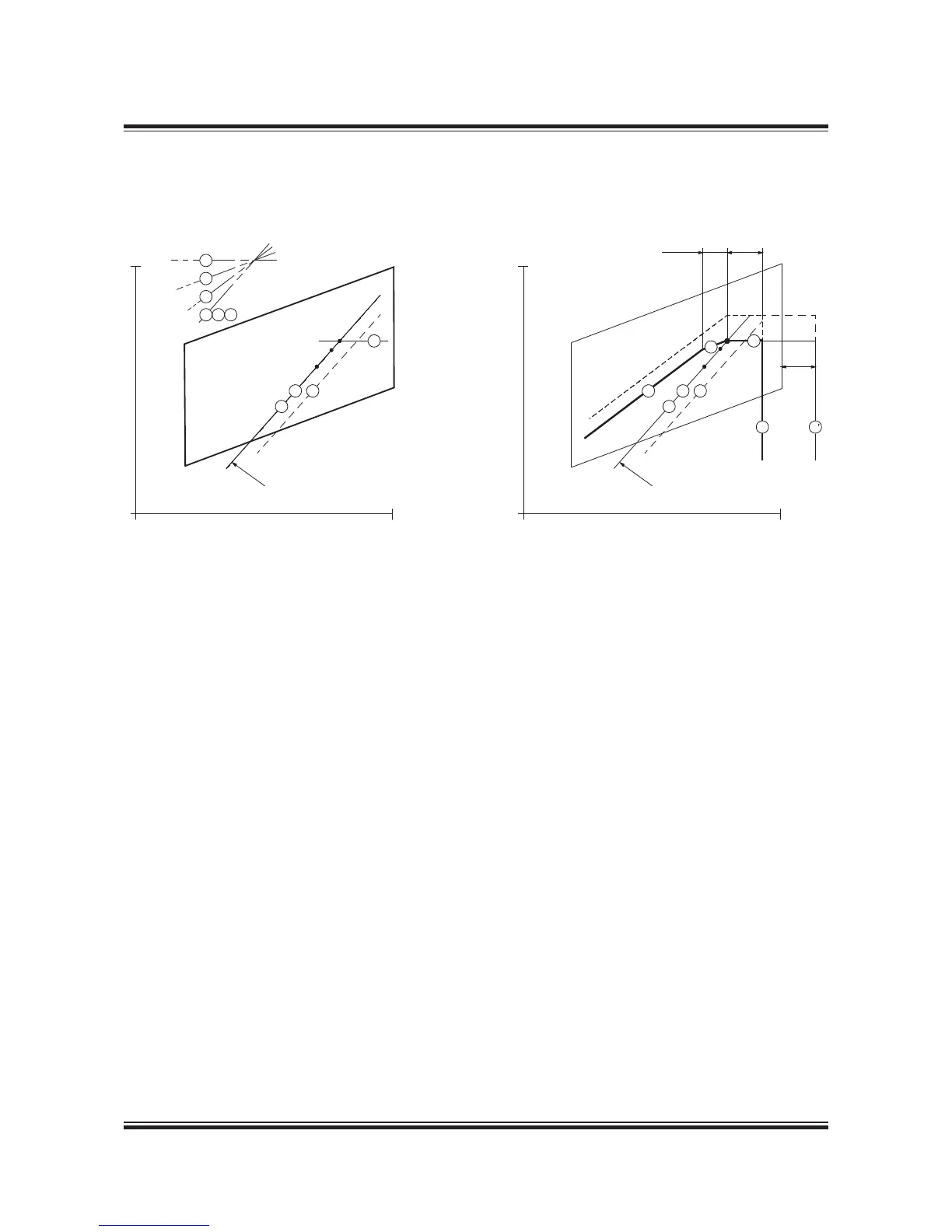

Example 1, Layout diagram for normal running conditions,
engine with FPP, without shaft generator
Example 1, Load diagram for normal running conditions,
engine with FPP, without shaft generator
178 55 82-5.0
For ME engines, the matching point O and its
propeller curve will normally be selected on the
engine service curve 2.
Point A is then found at the intersection between
propeller curve (2) and the constant power curve
through M, line 7. In this case point A is equal to
point M.
Once point A has been found in the layout dia-
gram, the load diagram can be drawn, as shown
in the gure, and hence the actual load limitation
lines of the diesel engine may be found by using
the inclinations from the construction lines and
the %gures stated.
