MAN B&W 4.03
Page 5 of 6
MAN Diesel
198 43 156.2MAN B&W K108ME-C6, K98MC/MC-C/ME/ME-C6/7,
S90MC-C/ME-C7/8, K90ME/ME-C9, K90MC-C/ME-C6, S80MC6,
S80MC-C7/8, S80ME-C7/8/9, K80ME-C9, K80MC-C/ME-C6,
S70MCC/ME-C/ME-GI7/8, S70MC6, L70MCC/ME-C7/8,
S65ME-C/ME-GI8, S60MC6, S60MC-C/ME-C/ME-GI7/8,
L60MC-C/ME-C7/8, S50MC-C7/8, S50MC6, S50ME-B8/9
Stator shell
Stuffing box
Crankshaft
Air cooler
Main bearing No. 
Pole wheel
Standard engine, with direct
mounted generator (DMG/CFE)
Support
bearing
Air cooler
Pole wheel
Stator shell
Stuffing box
Crankshaft
Main bearing No. 
Standard engine, with direct mounted
generator and tuning wheel
Tuning wheel

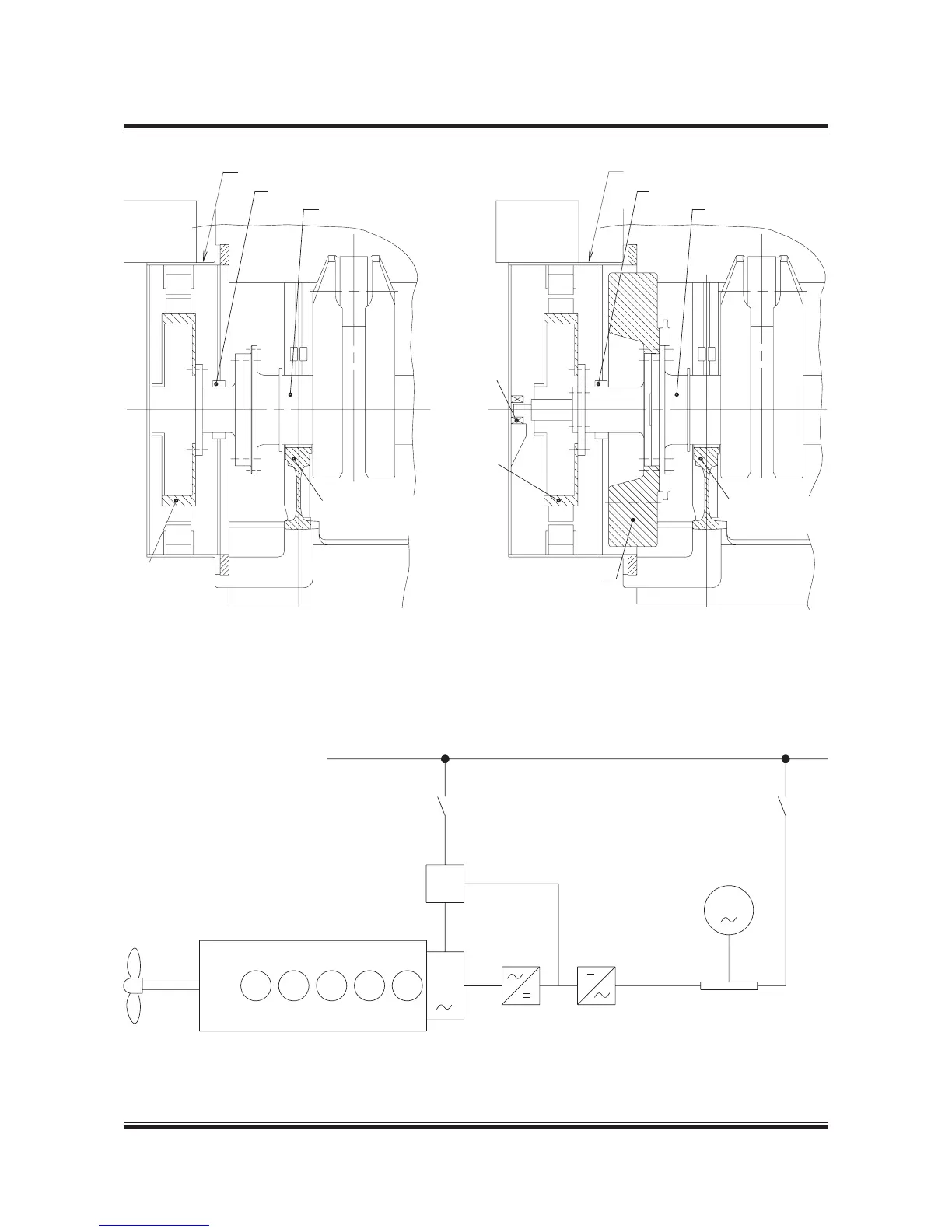

Fig. 4.03.05: Standard engine, with direct mounted generator and tuning wheel
178 06 637.1
Mains, constant frequency
Excitation converter
Synchronous
condenser
G
Diesel engine
DMG
Static converter
Smoothing reactor
Fig. 4.03.06: Diagram of DMG/CFE with static converter
178 56 553.1
