S80ME-C 198 47 05-1.0
MAN B&W Diesel A/S 5.07
Page 1 of 1

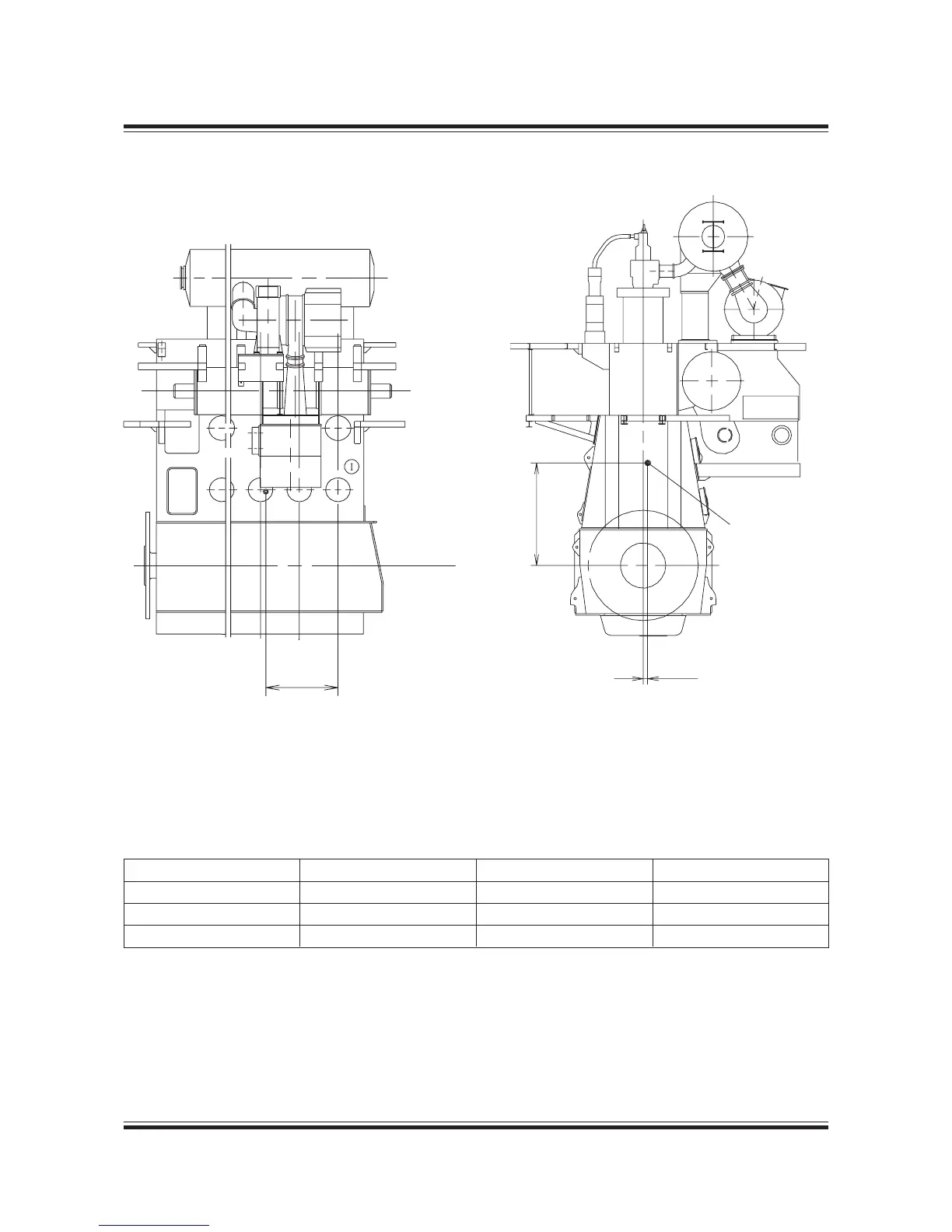

Centre of Gravity
Y
Z
Centre of
gravity
Center of
crankshaft
Centre of
cylinder 1
X
No. of cylinders 6 7 8
Distance X mm 4,180 4,800 5,560
Distance Y mm 3,580 3,550 3,550
Distance Z mm * 100 130 150
178 27 04-5.0178 32 14-9.0
For engines with one turbocharger
All dimensions are approximate
*) Depends on turbocharger and scavenge air cooler make, type and location.
Fig. 5.07.01: Data for centre of gravity
