Man B&W S80ME-C7 - Page 122

To Next Page

To Previous Page

198 47 23-0.0

MAN B&W Diesel A/S 5.06

Page 3 of 3

S80ME-C

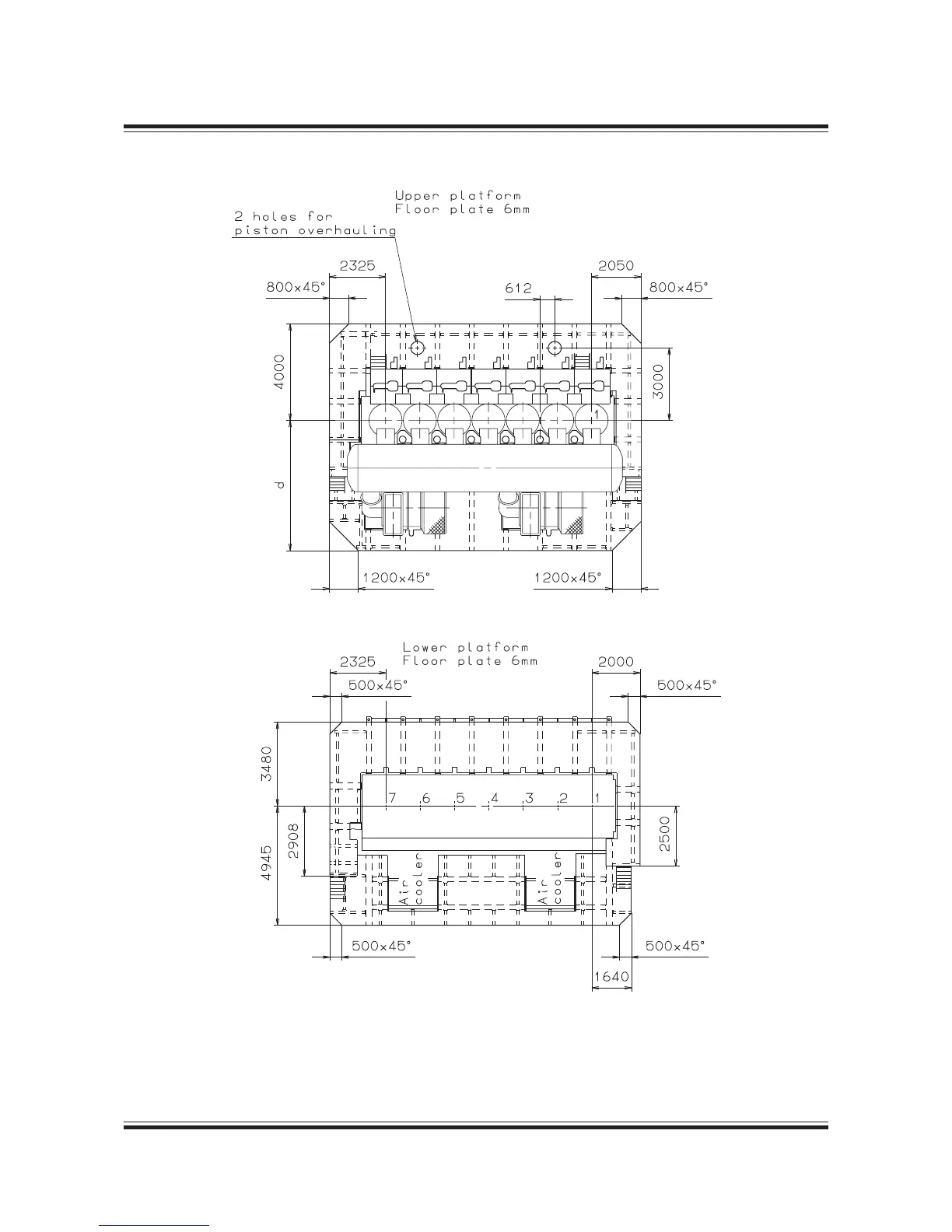

Fig. 5.06.03: Gallery outline 7S80ME-C with two turbochargers

178 51 74-0.0
