45Z5058A

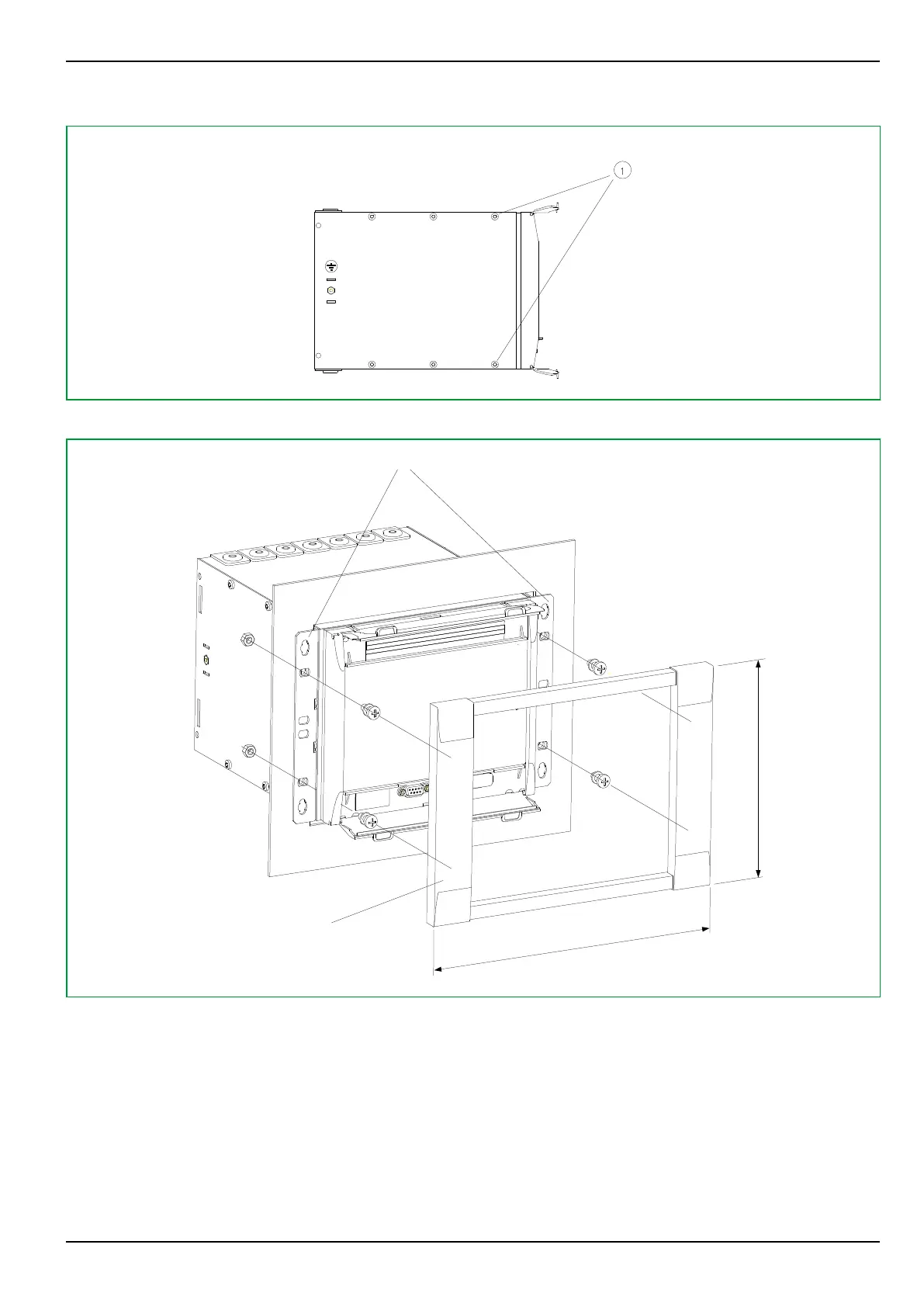

Fig. 5-4: Mounting the angle brackets.
the 40TE case
Height: 204mm
Angle brackets
Frame
12Y6183B
6.4
M6 x 15
M6
B6
Width: 280mm for
Fig. 5-5: Installation of a case into a control panel, flush-mount method 2 (with angle brackets and frame). Example
for a device in a 40 TE case.
The cover frame width of the 40 TE surface-mounted case is: 280 mm, of the
84 TE case is: 486 mm. The cover frame height is for all cases: 204 mm.
5 Installation and Connection
P634
P634/EN M/R-42-A // P634‑311‑653 5-9
