WARNING
The P634 has increased mechanical robustness if either the surface-mounted
case or for the flush-mounted case flush-mount method 2 (with angle
brackets and frame, see Fig. 5-5, (p. 5-9)) is used.
Connection of protective grounding conductor: See Section 5.5, (p. 5-12).
A rack mounting kit can be used to combine a flush-mounted 40 TE case with a
second sub-rack to form a 19″ mounting rack (see Fig. 5-6, (p. 5-10)). The
second sub-rack can be another device, for example, or an empty sub-rack with a
blank front panel. Fit the 19″ mounting rack to a cabinet as shown in Fig. 5-7,
(p. 5-11).
61Y5077A
Tapped bush
Connection flange
Bolt

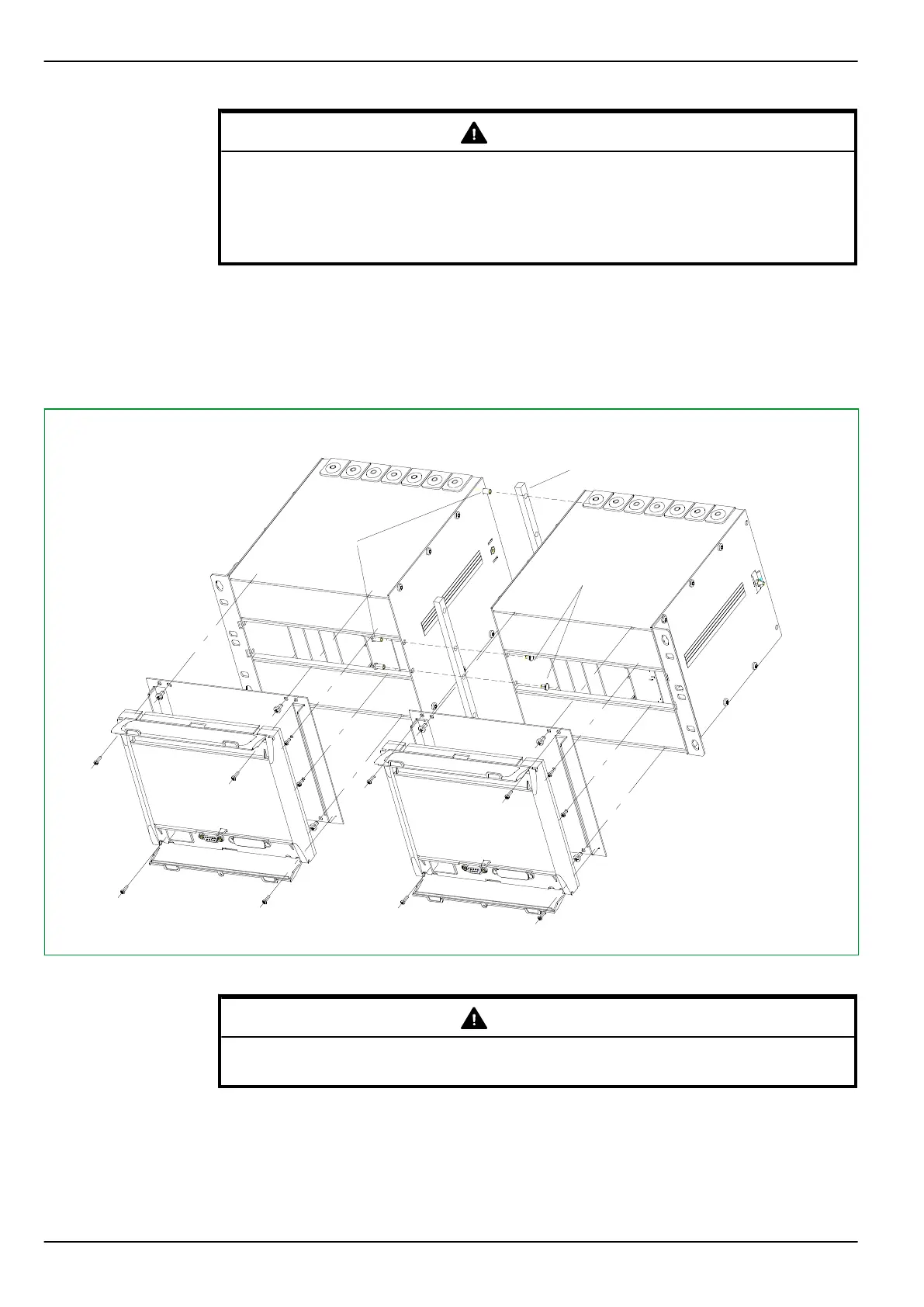

Fig. 5-6: Combining 40 TE flush-mounted cases to form a 19″ mounting rack.
WARNING
Connection of protective grounding conductor: See Section 5.5, (p. 5-12).
P634 5 Installation and Connection
5-10 P634/EN M/R-42-A // P634‑311‑653
